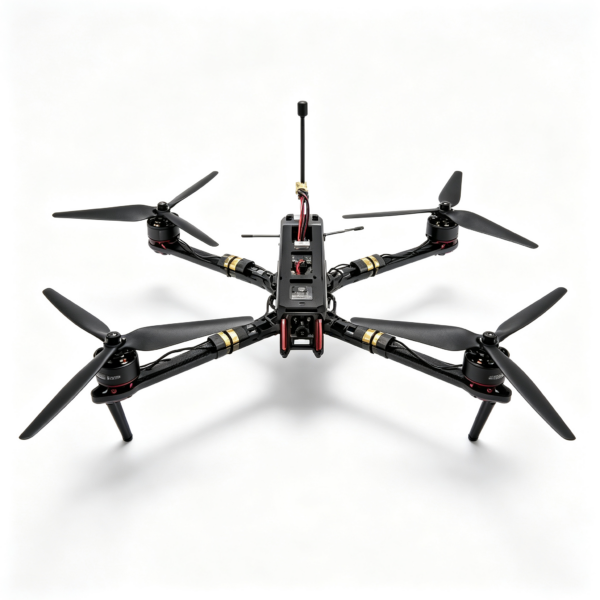

10‑inch FPV Heavy‑lift Drone | Max 5KG Payload FPV Quadcopter

# 10‑inch FPV Heavy‑lift Drone

The 10‑inch FPV heavy‑lift quadcopter is a professional high‑payload FPV working platform. It adopts F405 flight controller, 60A AM32 ESC and high‑power 3115 motors. Max payload reaches 5kg and standard working payload is 4kg with 6S high‑voltage power supply. It is equipped with starlight low‑light camera and multi‑band adjustable‑power VTX with video latency within 30ms. It is widely used for cargo delivery, heavy‑duty transport, site inspection and long‑range freestyle flight. Ample mounting expansion space, ideal for professional operation teams and training institutes.

✨ Key Features
✅ Super Heavy Payload: Max payload 5KG, recommended working payload 4KG, meets heavy‑cargo delivery and transport missions.
✅ 6S High‑Power Power System: 3115‑900KV motor (KV customizable), matched with 60A AM32 ESC, powered by 6S‑25.2V battery with abundant power reserve.
✅ Starlight Low‑Light Camera: 1700TVL, 1/2.7" Starlight CMOS sensor, clear image under dim light for day‑night flight missions.
✅ Multi‑Band High‑Power VTX: Supports 3.3G/4.9G/5.8G/6.5G, adjustable output power 1.6W/2.5W/4W. Video transmission latency ≤30ms for real‑time smooth footage.
✅ Long‑Range ELRS Receiver: ELRS 915M / 2.4G receiver paired with long‑range high‑gain RHCP antenna, long control distance and excellent anti‑interference capability.
✅ Reinforced Carbon‑fiber Frame: Wheelbase 427mm, frame dimension 325*277mm, high‑strength airframe with rich expansion mounting positions.

📋 Full Specifications
|Item|Parameter|
| ---- | ---- |
|Product|10‑inch FPV Heavy‑lift Drone|
|Frame|10‑inch frame, wheelbase 427mm, frame size 325*277mm|
|Flight Controller|F405 FC, ICM42688P Gyroscope, mounting hole:30.5*|
|ESC|60A AM32 ESC, Input:6S 25.2V; Continuous current:60A|
|Motor|3115 Motor, KV900 (KV customizable), Input:6S 25.2V|
|Propeller|3‑blade 1050 propeller|
|Camera|1700TVL, 1/2.7" Starlight CMOS Sensor|
|VTX|3.3G/4.9G/5.8G/6.5G; Power:1.6W/2.5W/4W adjustable; Video latency ≤30ms|
|Receiver|ELRS 915M / 2.4G Receiver|
|Antenna|Long‑range high‑gain RHCP Antenna|
|Weight|≈1.1kg (exclude battery)|
|Battery Connector|XT60|
|Standard Payload|4KG|
|Max Payload|5KG|
|Flight Time|8‑15 mins (3.5kg payload with 6S 8500mAh battery)|
|Included Accessory|20 * 250mm battery strap|

🎯 Application Scenarios
Heavy‑cargo delivery & transportation, field inspection, emergency operation, long‑range FPV flight, practical training. Suitable for professional operation teams, training institutions and engineering units.

📦 Package & Optional Accessories
> Optional accessories (NOT included)
- FPV Goggles: Langsite 008D Goggles
- Battery: 6S 8000mAh /10000mAh
- Radio Transmitter: TX12 / T14
- Charger: M6AC

Well‑cushioned package to avoid transit damage. Retail & bulk orders available. Pre‑built PNP and kit versions are both optional.

❓ FAQ
Q1: What is the maximum payload?
A: Max payload is 5KG, recommended working payload 4KG. Flight time 8‑15 mins with 3.5kg load and 6S 8500mAh battery.

Q2: Are battery and radio transmitter included?
A: Battery, radio and FPV goggles are optional extras. Please contact sales for full bundle quotation.

Q3: What is VTX latency and supported bands?
A: Video latency within 30ms. VTX supports 3.3G/4.9G/5.8G/6.5G with adjustable power 1.6W‑4W for stable long‑range video link.

Q4: Can motor KV value be customized?
A: Yes, KV of 3115 motor can be customized for bulk orders, please contact sales team.

Q5: What about frame size and durability?
A: Wheelbase 427mm, frame dimension 325*277mm. High‑strength carbon‑fiber airframe with plenty mounting positions for heavy‑lift missions.
