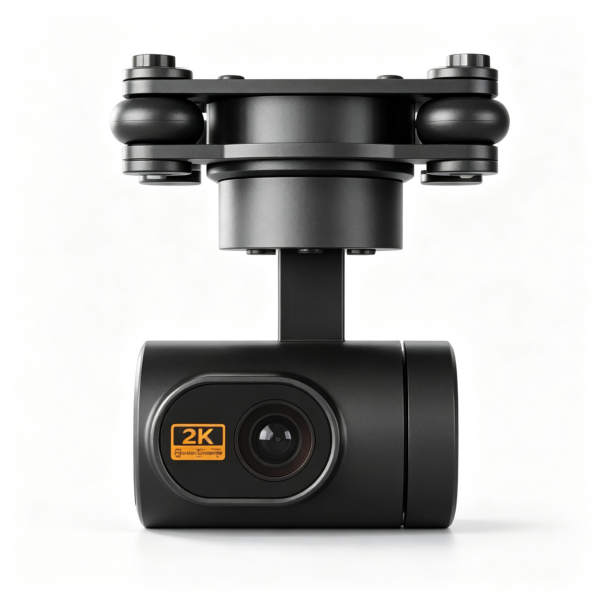

2K 3-Axis Stabilized EO Gimbal Camera | Network Port Drone Zoom Inspection Gimbal

This 3-axis stabilized electro-optical gimbal is a lightweight aerial imaging platform designed for small UAVs and FPV aircraft. Equipped with a 2K HD zoom lens and 3-axis gimbal stabilization, it effectively cancels flight vibration and attitude changes to deliver stable, smooth footage.

It adopts network port for both video output and control signal transmission with standard RTSP stream, compatible with mainstream flight controllers and ground station systems. 7.2V-72V wide voltage input adapts to various aircraft power systems. With only 61g ultra-lightweight design, it supports top-mount / upside-down mount, one-key centering and TF card local storage, widely used in aerial photography, inspection, reconnaissance and mapping scenarios.

✨ Key Features
✅ 3-Axis Gimbal Stabilization: Pitch / yaw / roll 3-axis stabilization with wide controllable angle range, effectively cancels flight vibration and airframe attitude change, delivers jello-free stable aerial footage
✅ 2K HD Zoom Lens: 1/2.7-inch sensor, 3.38-14.41mm zoom lens, 2MP effective pixels. Supports 2K local recording & photo capture, 1080P real-time video transmission, balances image quality and transmission fluency
✅ Dual Network Port, Strong Compatibility: Both video output and control use network port, RTSP stream with H.265 encoding, compatible with mainstream flight controllers, ground stations and video transmission systems for easy integration
✅ Wide Voltage Input, Wide Adaptability: 7.2V-72V wide working voltage, 210mA low power consumption, adapts to UAVs and FPV aircraft from 3-inch ducted drones to 17-inch industrial drones
✅ Lightweight & Multi-Function: Only 61g with compact structure. Supports top-mount / upside-down mounting modes and global one-key centering. Supports up to 32GB Micro SD card local storage with FAT32 file system

📋 Full Technical Specifications
| Category | Specification |
| —- | —- |
| Interface | |
| Video Output Interface | Network port |
| Control Signal Interface | Network port |
| Electrical | |
| Working Voltage | 7.2V ~ 72V |
| Working Current | 210mA |
| Operating Temperature | -10℃ ~ +60℃ |
| **Physical** | |
| Weight | 61g |
| Dimensions | 51mm(L) × 43.3mm(W) × 61.7mm(H) |
| Gimbal | |
| Pitch Axis | -90° ~ +10° |
| Yaw Axis | -90° ~ +90° |
| Roll Axis | -45° ~ +45° |
| Mounting Mode | Top-mount / Upside-down mount |
| Centering Function | Global return to center / One-key down / Yaw return to center |
| Lens | |
| Sensor | 1/2.7-inch sensor, EFL=2.4mm |
| Focal Length | f=3.38 ~ 14.41mm (optical zoom) |
| Effective Pixels | 2MP |
| Video & Image | |
| Output Mode | RTSP stream, H.265 |
| Live Transmission Resolution | 1080P |
| On-board Recording Resolution | 2K |
| Video Storage Format | MP4 |
| Photo Resolution | 2K |
| Photo Storage Format | JPG |
| Storage | |
| Storage Type | Micro SD card, up to 32GB max |
| File System | FAT32 |

🎯 Application Scenarios
This EO gimbal is widely used for: small UAV aerial photography, FPV first-person view flight, power / pipeline inspection & reconnaissance, topographic mapping & observation, security patrol monitoring, industrial operation monitoring. Compatible with multi-rotor UAVs, fixed-wing RC aircraft and FPV drones, it is an ideal stabilized imaging solution for lightweight aerial photography and operation.

📦 Packaging & Shipping
– Standard box with built-in buffer protection, protects lens and gimbal axis from damage during transit
– Supports retail, bulk orders and UAV complete unit bundle orders
– Optional accessories: video transmitter module, ground station, flight controller and more
– Domestic and international shipping available, logistics solutions negotiable for bulk orders

❓ Frequently Asked Questions
Q1: What interface does this gimbal use? What encoding does it support?
A: Both video output and control signal use network port interface, with RTSP stream and H.265 encoding, compatible with mainstream flight controllers and ground station systems.

Q2: What angle ranges does the gimbal support? Does it have centering function?
A: It supports 3-axis adjustment: pitch -90°~+10°, yaw -90°~+90°, roll -45°~+45°. It supports global centering, one-key down and yaw centering functions.

Q3: What are the resolutions for live view and local recording?
A: Real-time live transmission is 1080P, while on-board TF card video recording and photo capture are both 2K resolution, balancing real-time transmission fluency and local recording quality.

Q4: Does it support zoom? What is the focal length range?
A: Yes, it supports optical zoom. The lens focal length range is 3.38mm-14.41mm, adapting to shooting scenarios of different distances.

Q5: How much does it weigh? Does it support upside-down mount?
A: Only 61g ultra-lightweight design. It supports both top-mount and upside-down mounting modes to fit different aircraft installation requirements.
