B30 Hexacopter Heavy-Lift Industrial Drone | 30kg Payload 58min Endurance LIDAR Obstacle Avoidance Delivery Drone

B30 Hexacopter Heavy-Lift Industrial Drone | 30kg Payload 58min Endurance LIDAR Obstacle Avoidance Delivery Drone

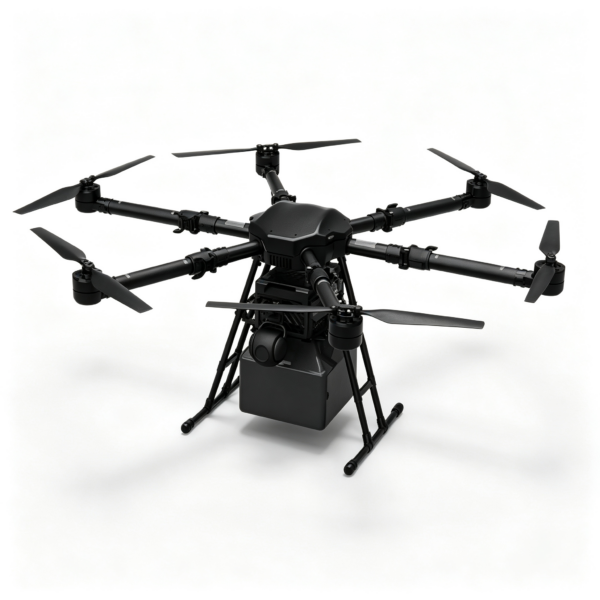

The B30 is a heavy-lift six-rotor UAV platform built for industrial operation scenarios. It has an empty weight of 33kg, a maximum take-off weight of 78kg and a standard payload of 30kg, delivering outstanding heavy-load operation capability.

Equipped with dual 14S high-capacity intelligent batteries, it achieves up to 58 minutes of hover endurance and 30km maximum video transmission range, capable of long-distance long-endurance missions. The foldable arm design ensures convenient transport and transition. It features LIDAR obstacle avoidance system, RTK high-precision positioning, IP54 protection rating and level-7 wind resistance, adapting to complex outdoor environments.

With single/dual delivery system, it is widely used in emergency relief delivery, logistics transportation, power line inspection, mapping and surveying and other professional industrial scenarios.

✨ Key Product Features
✅ 0kg Heavy Payload, 58min Long Endurance: 30kg standard working payload, 78kg maximum take-off weight. Dual 14S 40000mAh intelligent batteries, up to 58 minutes hover endurance, balancing heavy load and long-endurance operation
✅ 30km Long-Range Video Link, Industrial Protection: 30km maximum video transmission range for long-distance operations. IP54 whole-machine protection, level-7 wind resistance, -25℃~55℃ operating temperature, adapts to harsh environments
✅ RTK High-Precision Positioning, LIDAR Obstacle Avoidance: Centimeter-level hover accuracy with RTK enabled (±10cm horizontal / ±10cm vertical). LIDAR obstacle avoidance system with 4-direction perception (front/rear/left/right), up to 100m ranging distance for safe flight in complex environments
✅ Professional Delivery System: Supports single/dual delivery. 25kg maximum single delivery weight, 12V power supply, 500-2500μs pulse width, compatible with various material delivery missions
✅ 6-Axis Redundant Powertrain: Six-rotor layout, A12 motors paired with 41-inch carbon fiber folding propellers, sufficient power redundancy, stable and reliable flight, abundant power for heavy-load operation
✅ Foldable Arm Design: Arms fold in the same direction. 2400×2400×831mm unfolded, 1200×1200×831mm folded. Convenient for transition and transportation, saves space

📋 Full Product Specifications
| Category | Specification |
| —- | —- |
| Flight Platform | |
| Empty Weight | 33kg |
| Maximum Take-off Weight | 78kg |
| Standard Payload | 30kg |
| Maximum Wheelbase | 2280mm |
| Dimensions (arms unfolded) | 2400 × 2400 × 831mm |
| Dimensions (arms folded) | 1200 × 1200 × 831mm |
| Folding Method | Folding towards the body |
| Number of Onboard Batteries | 2 packs |
| Maximum Flight Distance | 30km |
| Maximum Hover Time | 58min |
| Maximum Flight Time | 30min (full load) |
| Working Temperature Range | -25℃ ~ 55℃ |
| Protection Level | IP54 |
| Hover Accuracy (RTK enabled) | ±10cm horizontal / ±10cm vertical |
| Hover Accuracy (RTK disabled) | ±60cm horizontal / ±30cm vertical |
| GNSS | Full system: GPS + BeiDou + Galileo + GLONASS |
| Maximum Ascent Speed | 6m/s |
| Maximum Descent Speed | 4m/s |
| Maximum Horizontal Speed | 15m/s |
| Maximum Flight Altitude (ASL) | 4500m |
| Maximum Flight Height (AGL) | 2500m |
| Maximum Wind Resistance | Level 7 |
| Delivery System | |
| Max Delivery Weight | 25kg single route, supports dual delivery |
| Power Supply Voltage | 12V |
| Pulse Width | 500 – 2500μs |
| Power System| |
| Motor Model | A12 |
| Motor KV | kv70 |
| Blade Material | Carbon fiber |
| Propeller Size | 41-inch |
| Propeller Type | Folding paddle |
| Number of Rotors | 6-axis |
| Safety System | |
| Safety System | LIDAR Obstacle Avoidance Radar |
| Obstacle Avoidance Direction | Forward + Backward + Left + Right |
| Sensing & Max Ranging | 3-15m (adjustable sensing), 100m (max ranging) |
| Measurement Frequency | ≥10Hz |
| Flight Battery | |
| Single Pack Weight | 14kg |
| Capacity | 14S 40000mAh × 2 packs |
| Nominal Voltage | 51.8V |
| Cycle Life | ≥300 cycles |
| Smart Charger | |
| Charger Model | U1+ |
| Dimensions | 287 × 145 × 139mm |
| Weight | 3.5kg |
| Input Voltage | 100-240V |
| Discharge Power | Max.50W |
| Charging Power | 1200W |
| Charging Current | Max.25A |

🎯 Application Scenarios
This B30 hexacopter is widely used for: emergency relief precision delivery, heavy cargo air transportation, power line inspection, topographic mapping & survey, fire reconnaissance, border patrol, maritime inspection, large construction site monitoring. Ideal for emergency management departments, power inspection units, surveying institutions, logistics enterprises and security departments.

📦 Packaging & Shipping
– Industrial-grade flight case packaging with built-in buffer fixing structure, protects airframe, payload and precision components, suitable for long-distance transportation and transition
– Supports complete machine purchase and customized configuration (delivery / inspection / mapping mission kits)
– Optional accessories: FPV goggles, backup batteries, smart charger, ground station and more
– Domestic and international shipping available, exclusive logistics and after-sales solutions negotiable for project orders

❓ Frequently Asked Questions FAQ
Q1: What is the maximum payload? What is the flight time at full load?
A: 30kg standard working payload, 78kg maximum take-off weight. Maximum flight time is 30 minutes at full load, and maximum hover endurance reaches 58 minutes.

Q2: Are the arms foldable? What is the folded size?**
A: Yes, arms fold in the same direction. Unfolded size: 2400×2400×831mm; folded size: only 1200×1200×831mm, greatly saving transport and storage space for easy transition.

Q3: How is the obstacle avoidance capability? How many directions?
A: Equipped with LIDAR obstacle avoidance system, supporting 4-direction avoidance: front, rear, left and right. Sensing distance is adjustable from 3-15m, maximum ranging up to 100m with ≥10Hz measurement frequency, ensuring high flight safety in complex environments.

Q4: What is the protection rating? Can it operate in rain or low temperature?
A: IP54 whole-machine protection, resistant to light rain and dust. Operating temperature range from -25℃ to 55℃, with level-7 wind resistance, adapting to various harsh outdoor working conditions.

Q5: How is the positioning accuracy? Does it support RTK?
A: It supports RTK high-precision positioning. With RTK enabled, hover accuracy reaches ±10cm horizontal / ±10cm vertical. Without RTK, it still achieves ±60cm horizontal / ±30cm vertical, meeting various operation accuracy requirements.
