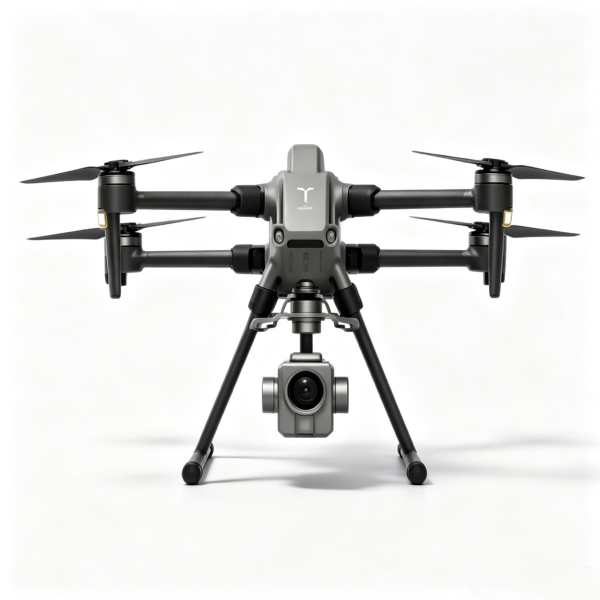

GDU S400 PRO Series S400E Industrial Camera Drone

GDU S400 PRO Series S400E Industrial Camera Drone | 3kg Payload Thermal Imaging RTK Inspection UAV

The S400E is a lightweight industrial-grade flagship UAV under the GDU S400 PRO Series, featuring groundbreaking upgrades in flight stability, operational autonomy and intelligence. Equipped with industry-leading BVLOS (Beyond Visual Line of Sight) networking technology, it enables seamless intelligent interconnection between multiple UAVs and control terminals, supports cross-obstacle relay communication, and significantly improves cluster operation efficiency.

Built with a high-strength magnesium alloy frame, its foldable structure balances structural safety, flight stability and outdoor portability. Advanced millimeter-wave radar combined with an integrated binocular sensing system delivers all-weather, omnidirectional obstacle avoidance. The onboard AI edge computing module provides high-precision, automated and visual professional capabilities for power, solar and wind turbine inspection missions.

✨ Key Product Features
- ✅ **BVLOS Multi-UAV Relay Networking**: Supports cross-obstacle communication, intelligent connection between multiple drones and control terminals, ideal for cluster inspection operations
- ✅ **All-Weather Millimeter-Wave Obstacle Avoidance**: Dual sensing system of millimeter-wave radar + binocular vision, 360° all-direction detection, stable performance in complex environments day and night
- ✅ **49-Minute Long Flight Time**: Up to 49 minutes hovering endurance in no wind / light wind conditions, supports long-duration outdoor inspection tasks
- ✅ **3kg Max Payload Capacity**: 3kg loading capacity for various mission payloads such as thermal cameras; 15m/s max safe flight speed at full load
- ✅ **1K Thermal Camera**: Professional thermal temperature measurement capability for power line inspection, solar farm detection and security monitoring
- ✅ **RTK Centimeter-Level Positioning**: ±0.1m horizontal & vertical hovering accuracy in RTK mode, centimeter-level absolute positioning accuracy
- ✅ **IP45 Ingress Protection**: Dust-proof and water-jet resistant, capable of short-time operation in light rain for complex outdoor weather
- ✅ **15km Long-Range Transmission**: 15km digital video transmission range at 200m altitude without signal interference
- ✅ **ADS-B Flight Safety**: Built-in ADS-B function detects surrounding civil aviation aircraft for active evasion, improves flight compliance
- ✅ **Portable Foldable Design**: Lightweight magnesium alloy airframe, backpack-friendly for easy transportation and field deployment

📋 Full Product Specifications
| Item | Specification |
| ---- | ---- |
| Model | GDU S400E (S400 PRO Series) |
| Unfolded Dimensions (propellers excluded) | 549 × 592 × 424mm |
| Folded Dimensions (body & propellers included) | 347 × 367 × 424mm |
| Diagonal Wheelbase | 725mm |
| Max Take-off Weight | 7kg |
| Max Payload | 3kg (15m/s max safe flight speed at full load) |
| Max Horizontal Flight Speed | 23m/s (Sport mode, horizontal flight in no wind) |
| Service Ceiling | 5000m above sea level |
| Max Wind Resistance | 12m/s (Level 7 wind) |
| Max Flight Time | 49 mins (hovering test from full to low battery, no wind / light wind) |
| GNSS Hovering Accuracy | ±1.5m horizontal, ±0.5m vertical (GNSS on) |
| Vision Positioning Hovering Accuracy | ±0.3m horizontal (vision positioning on) |
| RTK Hovering Accuracy | ±0.1m horizontal, ±0.1m vertical (RTK on) |
| RTK Positioning Accuracy | 1cm+1ppm vertical, 1.5cm+1ppm horizontal |
| IP Rating | IP45 |
| Video Transmission Range | 15km (at 200m altitude, no interference) |
| Flight Safety Feature | ADS-B civil aviation detection & evasion, identifies surrounding aircraft information for avoidance |

🎯 Application Scenarios
The GDU S400 PRO Series industrial drone is widely used for professional industrial scenarios: high-voltage power line inspection, solar farm full-area inspection, wind turbine blade detection, security patrol monitoring, emergency disaster reconnaissance, topographic surveying & mapping, forestry resource patrol, water conservancy dam monitoring. Ideal for professional inspection service providers, engineering contractors, security & emergency departments, and global wholesale distributors.

📦 Packaging & Shipping
- Industrial shockproof protective packaging with built-in buffer structure ensures safety during long-distance transportation
- Supports retail, project bulk orders and international wholesale orders
- Worldwide shipping available, with regional compliant versions for different markets
- Optional original accessories: smart batteries, remote controller, professional carrying backpack, etc.

❓ Frequently Asked Questions FAQ
Q1: What is the maximum payload of this drone?**
A: The maximum payload is 3kg. The maximum safe flight speed is 15m/s under full load, compatible with professional payloads like thermal cameras.

Q2: Does it support thermal imaging? What temperature scenarios is it suitable for?**
A: It is equipped with a 1K professional thermal camera for temperature detection, widely used for power line temperature measurement, solar panel hot spot detection, and fire heat source inspection.

Q3: What is the accuracy of RTK positioning?**
A: Hovering accuracy is ±0.1m horizontally and ±0.1m vertically in RTK mode. Absolute positioning accuracy reaches 1cm+1ppm vertical, 1.5cm+1ppm horizontal, meeting centimeter-level requirements for professional surveying and inspection.

Q4: Can it fly in rain with IP45 rating?**
A: IP45 rating provides dust protection and resistance to low-pressure water jets. It can operate in light rain for short periods; prolonged flight in heavy rain or submerged conditions is not recommended.

Q5: How far is the video transmission range?**
A: In open areas at 200m altitude without electromagnetic interference, the digital video transmission range can reach 15km.

🛒 Contact Us For Quotation
If you need detailed quotation, accessory list or customized solutions for the GDU S400 PRO Series S400E industrial drone, please contact our sales team. Bulk orders and international trade inquiries are welcome.
