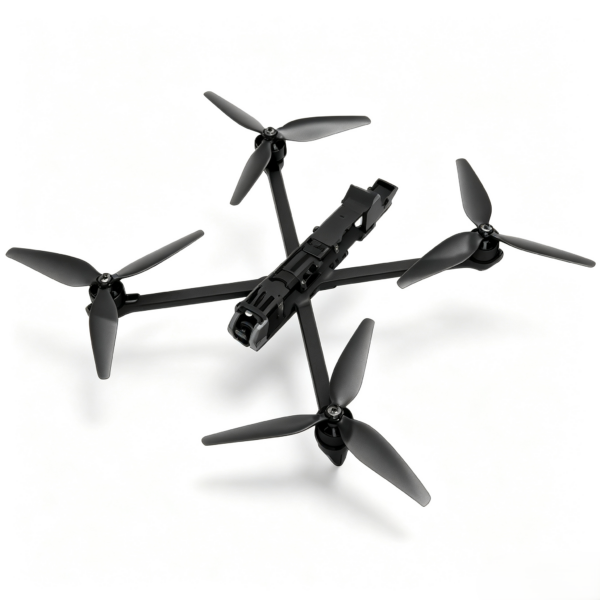

Lion 10 10 Inch Heavy-Lift Long-Range FPV Drone | 45min Endurance | 6kg Max Payload | 10km Control Range | Industrial-Grade Operation UAV

Product Overview

The Lion 10 is a 10-inch heavy-lift FPV drone designed for light industrial operations, long-range reconnaissance and advanced FPV long-distance pilots. Built with a large high-strength airframe and high-efficiency propulsion system, it balances ultra-long endurance, strong payload capacity and long-range control performance, serving as a high-performance flight platform for industrial inspection, emergency survey, aerial mapping and ultra-long-range flight.

Adopting a professional 10-inch FPV frame with unfolded dimensions of 551×551×61mm, it features a solid impact-resistant structure and sufficient reserved space for payload installation. Equipped with a professionally tuned high-efficiency power system, it reaches a maximum horizontal flight speed of 150km/h and delivers up to 45 minutes of no-load flight time, far exceeding conventional small-size FPV drones. It supports 4kg standard payload and 6kg maximum payload, and maintains 8-10 minutes of flight time under loaded condition, capable of carrying cameras, detection devices and small operation modules to complete diverse missions. Paired with a 915MHz long-range receiver, it achieves a maximum control range of 10km. With optional 1.2G/5.8G VTX solutions, it fully meets the signal requirements of long-distance operations and ultra-long-range flight. It comes standard with a 165° enhanced night vision wide-angle camera that delivers clear imaging in low-light environments, adapting to night operations and low-light reconnaissance for outstanding all-weather capability.

Core Features & Benefits

1. 10-Inch Heavy-Lift Frame with Balanced Long Endurance & High Payload

Built with a 10-inch high-strength FPV frame, it features excellent structural rigidity and impact resistance, with ample reserved space for equipment installation and payload mounting. The professionally tuned high-efficiency propulsion system delivers up to 45 minutes of no-load flight time, greatly expanding the coverage of single operation and flight. With 4kg standard payload and 6kg maximum payload, it still maintains 8-10 minutes of flight time under loaded condition, and can easily carry HD cameras, environmental detection devices and small operation devices, balancing both recreational long-range flight and light industrial operation demands.

2. 10km Long-Range Control with Stable 915MHz Radio Link

It supports both TBS and ELRS 915MHz long-range receiver solutions. The low-frequency band delivers strong diffraction penetration and excellent anti-interference performance, with a maximum control range of up to 10km, greatly expanding the operation radius and flight boundary. The proven and stable long-range RF solution maintains reliable connection even in complex terrains such as mountains and suburbs, as well as light obstruction environments, fully meeting the demands of long-distance inspection, ultra-long-range flight and large-scale survey.

3. Dual-Band VTX Options with Night Vision Camera for All-Weather Operation

The video transmission system supports optional 1.2GHz and 5.8GHz frequency bands for flexible configuration: the 1.2G band features strong diffraction penetration and low signal attenuation, more suitable for long-range flight and complex operation environments with obstructions; the 5.8G band delivers low latency and smooth image quality, suitable for precise control at medium and short distances.

It comes standard with a 1200TVL HD wide-angle camera with 480p resolution and 165° ultra-wide field of view. Equipped with enhanced night vision optimization algorithm, it delivers clear and bright imaging in low-light and nighttime environments, enabling accurate identification of environmental obstacles and operation targets, and greatly improving flight safety and operation capability in low-light and night scenarios.

4. Powerful Propulsion with Balanced Speed and Environmental Adaptability

The high-efficiency power system delivers strong output with a maximum horizontal flight speed of 150km/h. It features rapid acceleration response and flexible, controllable flight attitude, capable of both stable hovering for fixed-point operation and fast maneuvering for long-distance relocation. It supports a maximum flight altitude of 2000 meters, adapting to complex operation environments at high altitudes and diverse terrains with excellent scenario adaptability.

5. Professionally Tuned Ready-to-Fly with Modular Design for Easy Maintenance

The whole drone undergoes professional flight tuning and parameter adaptation before delivery. The flight controller, power system, VTX and receiver are all optimized to the best state for flight right out of the box. Adopting a modular universal design with highly standardized core accessories, it enables convenient daily maintenance and leaves ample upgrade space for power system, payload and VTX link, supporting flexible customization and modification according to operation demands.

Applicable Scenarios

• Light industrial UAV operations such as power line inspection, pipeline patrol and factory security
• Aerial reconnaissance and video transmission for emergency rescue, forest fire prevention and field search and rescue
• Large-scale topographic survey, outdoor exploration and ultra-long-range FPV flight
• Customized missions such as small material delivery and special operation equipment mounting
• Low-altitude reconnaissance and site inspection at night and in low-light environments
