Portable Ku-Band Starlink Detection Device | XL-UP Satellite Internet Signal Detector | 1U Industrial Portable Design | 10km Terminal Detection | Signal Recording & Playback | Multi-Mode Management | Spectrum Monitoring Equipment
XL-UP Portable Ku-Band Starlink Detection Device adopts a 1U industrial portable chassis, operates on the 14.0-14.5GHz band with 8-channel parallel signal detection, and achieves 10km satellite terminal detection in open environments. It features signal recording & playback, touch interaction, voice broadcast, gigabit wired + WiFi/4G wireless transmission and multi-level device management. With wide temperature & voltage tolerance and high reliability, it is suitable for spectrum monitoring, satellite communication O&M and airspace security control scenarios.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview

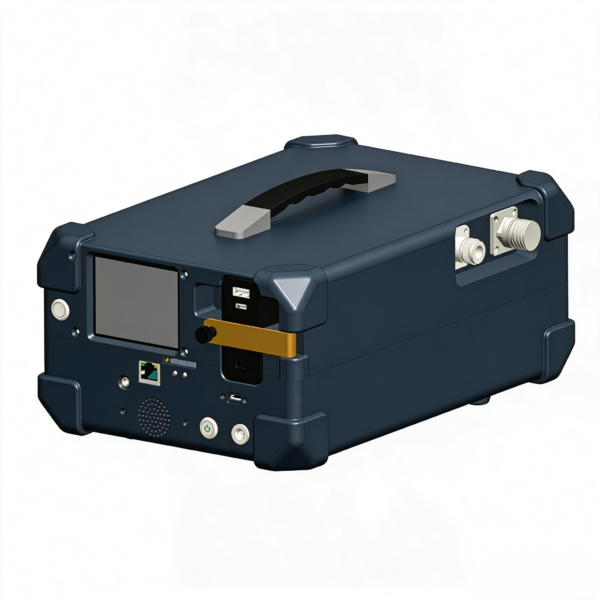

The XL-UP Portable Starlink Detection Device is a professional-grade signal detection and terminal positioning solution developed for Ku-band satellite internet scenarios. Adopting an integrated 1U portable chassis design, it integrates a high-gain receiving antenna, Low Noise Block (LNB) downconverter and high-performance digital signal processing unit, enabling full-area spectrum scanning, accurate target satellite signal acquisition, and continuous dynamic tracking of satellite terminal trajectories to ensure consistent and reliable signal reception.
Powered by an ARM+FPGA heterogeneous computing architecture, the device operates across the 14.0GHz~14.5GHz frequency band, performs parallel detection across 8 frequency channels with a response time of ≤250ms, and delivers up to 10km of satellite terminal detection range in open, unobstructed environments. It is also equipped with comprehensive features including signal recording & playback, touchscreen interaction, TTS voice announcement, gigabit wired connectivity, WiFi/4G wireless transmission, and multi-level device management. Built to industrial-grade standards with wide-voltage input and wide-temperature operation, it boasts an MTBF of ≥50,000 hours. Balancing portability and reliability, it serves as a professional detection tool for electromagnetic spectrum monitoring, satellite terminal inspection, on-site signal verification, and security airspace control.
Core Technical Specifications
Basic Appearance Specifications
| Specification | Details |
|---|---|
| Form Factor | Portable 1U rack-mount design |
| Body Dimensions | 306mm × 206mm × 137mm (excluding external antenna array) |
| Net Weight | ＜4.5kg (including built-in backup power bank, excluding external antenna array) |
| Body Color | Industrial Gray |
| Status Indicators | Power indicator, detection signal light bar, Ethernet connection indicator, alarm indicator |
Core Hardware Configuration
| Module | Specifications |
|---|---|
| Main Controller | ARM Cortex-A53, 1.5GHz clock speed |
| Computing Unit | FPGA RFSOC-67DR |
| RAM | 2GB DDR4 |
| Storage | 64GB eMMC |
| Display | 3.2-inch LCD touch screen |
| Power Supply | Built-in lithium battery; supports DC5521 input and Type-C PD power delivery |
| Battery Life | ≥45 minutes |
Antenna & RF Performance
| Specification | Details |
|---|---|
| Antenna Frequency Range | 9.84GHz – 15GHz |
| Antenna Gain | 20dB |
| Antenna Dimensions | 115mm × 83mm × 220mm |
| LNB Performance | Ku-band to L-band frequency conversion, gain ＞68dB |
| Operating Frequency Band | 14.0GHz ~ 14.5GHz |
| Total System Gain | 20dB (built-in horn antenna) + 68dB (LNB) |
| Receiving Sensitivity | -97dBm |
Interfaces & Communication
| Category | Details |
|---|---|
| Wired Network | 1 × Gigabit RJ45 Ethernet port, 10/100/1000Mbps auto-negotiation, supports TCP/IP, UDP, ICMP protocols |
| Power Interfaces | Aviation connector (DC 16-30V), DC5521 port, Type-C PD port |
| Wireless Communication | Built-in WiFi and 4G modules for wireless data transmission |
| Management Interfaces | RS485 serial port, Telnet (port 23), SSH (port 22) |
Environment & Reliability
| Specification | Details |
|---|---|
| Operating Voltage | DC 16V ~ 30V, operating current 8A |
| Power Consumption | ≤85W (full-load operation + charging state) |
| Cooling System | Combined passive cooling + active fan cooling |
| Operating Temperature | -25℃ ~ +55℃ |
| Mean Time Between Failures (MTBF) | ≥50,000 hours |
| Mean Time To Repair (MTTR) | ≤1 hour |
| Optional Redundancy | Supports external power modules, external antenna arrays and other redundant components |
Core Features & Benefits
1. Professional Satellite Detection with Long-Range Accuracy
Equipped with a dedicated Ku-band receiving antenna and high-performance LNB frequency conversion unit, paired with an FPGA-powered digital signal processing architecture, it delivers parallel detection across 8 frequency bands with a response time of ≤250ms, enabling fast beacon frequency identification and signal feature extraction. It supports full-area scanning via the antenna array; in open, unobstructed environments, it achieves long-distance detection of satellite terminals within a 10km range, and performs continuous dynamic tracking of target satellite/user terminal trajectories to ensure consistent, accurate signal monitoring.
2. Real-Time Signal Recording & Playback with Raw Data Preservation
It supports real-time recording and playback of detected signals. Upon target signal capture, it synchronously completes raw data recording, storage and playback with the same ≤250ms response speed as detection. Full raw signal data is retained for post-analysis, traceability verification and scenario review, meeting professional requirements for scientific research detection and spectrum forensics.
3. Diverse Interaction Methods for Intuitive On-Site Operation
- The 3.2-inch LCD touchscreen enables direct control of detection, recording and playback, plus real-time viewing of detection results — no external equipment required for field operation;
- An integrated TTS voice broadcast chip delivers audible detection results for hands-free operation. It also supports Bluetooth headset connectivity for wireless voice alerts, ideal for covert operations and mobile patrol scenarios.
4. Full-Link Connectivity for Stable, Efficient Data Transmission
A Gigabit RJ45 Ethernet port delivers full-duplex throughput of ≥950Mbps, supporting mainstream network protocols including TCP/IP, UDP and ICMP for stable, high-speed wired transmission. Built-in WiFi and 4G modules provide flexible wireless connectivity for diverse field environments, enabling real-time detection data backhaul and remote interaction.
5. Multi-Level Device Management for Flexible O&M
Three device management modes are available to suit different usage scenarios:
- Web Management: Graphical interface compatible with all mainstream browsers, with configuration backup and restore for intuitive, user-friendly operation;
- CLI Command Line Management: Supports serial port, Telnet and SSH access for refined configuration by professional technicians;
- Remote Management: Enables remote configuration, firmware upgrades and fault diagnosis via the 4G module, eliminating the need for on-site operation and maintenance.
6. Industrial-Grade Portable Design for All Scenarios
The 1U portable form factor weighs under 4.5kg for easy transport, making it ideal for mobile field detection, outdoor operation and vehicle-mounted deployment. Built to industrial-grade standards with wide voltage and temperature tolerance, it operates reliably across -25℃ to 55℃. The combined passive and fan cooling system ensures stable full-load operation, and the ≥50,000-hour MTBF delivers outstanding long-term reliability.
Applicable Scenarios
- Electromagnetic spectrum management & monitoring: Regional spectrum environment inspection, satellite signal compliance testing
- Satellite communication O&M: On-site satellite internet deployment & commissioning, signal quality verification, troubleshooting
- Security & airspace control: Illegal satellite terminal inspection, satellite signal monitoring in restricted areas
- Scientific research & education: Satellite communication experiments, signal analysis research, teaching demonstrations
- Emergency support: On-site emergency communication signal detection, temporary deployment verification
Package Contents
- 1 × Portable Starlink Detection Main Unit
- 1 × Dedicated Detection Antenna
- 1 × Power Adapter
- 1 × Product User Manual
- 1 × Set of Matching Data Cables
| SKU | IUAV-14090 |
|---|
