In Stock — Ready to Ship

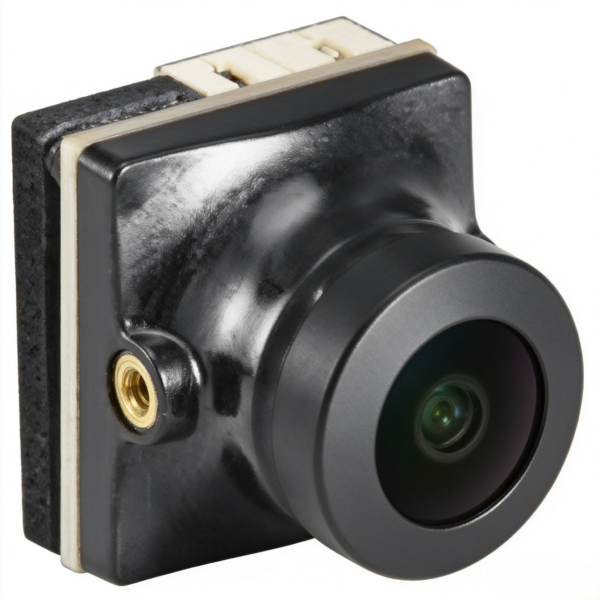

RFCAM-007 Starlight Night Vision FPV Camera | 1/3" CMOS Sensor | 960TVL HD | 0.001Lux Ultra-Low Illumination | CVBS Analog Output | For FPV Drone Night Flight
RFCAM-007 starlight night vision FPV camera features a 1/3" CMOS sensor with 3.75μm large pixels, delivering 0.001Lux ultra-low illumination night vision and 960TVL HD resolution with clear delicate footage. With standard CVBS analog output for wide compatibility and compact lightweight design, it is designed for FPV night flight and night inspection UAVs, with excellent imaging performance in low-light environments.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The RFCAM-007 is a high-definition night vision analog camera designed for FPV racing drones and small UAV night flight scenarios, also suitable for industrial low-light monitoring, security surveillance and other diversified applications. It adopts a 1/3-inch large-format CMOS image sensor with 3.75μm large pixel units, which greatly improves light sensitivity and achieves 0.001Lux ultra-low illumination imaging capability, delivering clear and bright footage even in dim night environments.
This camera supports 960TVL horizontal HD resolution with rich details and sharp edges. Paired with an optimized image processing algorithm, it effectively suppresses low-light noise and restores real scene details accurately. With industry-standard CVBS analog signal output, it is compatible with most mainstream FPV analog VTX, flight displays and video recording devices, featuring plug-and-play and strong adaptability. The compact lightweight design fits mainstream drone frames, with excellent anti-electromagnetic interference performance and reliable long-term operation, making it an ideal vision solution for FPV night flight and night operation UAVs.
Core Technical Specifications
| Category | Details |
|---|---|
| Model | RFCAM-007 |
| Product Type | Night Vision Analog Video Camera |
| Image Sensor | 1/3-inch CMOS Sensor |
| Pixel Size | 3.75μm |
| Horizontal Resolution | 960 TVL |
| Minimum Illumination | 0.001 Lux |
| Video Output | CVBS Analog Signal Output |
| Core Feature | Starlight Night Vision, Low-Noise HD Imaging |
Core Features & Benefits
1. Large-Format CMOS + Large Pixels for Superior Light Sensitivity
Equipped with a 1/3-inch large-format CMOS image sensor with 3.75μm large pixel units, it effectively improves single-pixel light intake and photosensitive sensitivity. Compared with ordinary small-pixel cameras, it greatly enhances the signal-to-noise ratio of images in low-light environments, delivering cleaner footage with less noise in dark scenes, providing a solid hardware foundation for high-definition night vision imaging.
2. 0.001Lux Ultra-Low Illumination for Clear Starlight Night Vision
Deeply optimized and tuned for night low-light scenarios, the minimum illumination reaches 0.001Lux, with starlight-level night vision imaging capability. It outputs bright and clear images even in dim and low-light night environments, effectively restoring scene outlines and details. It solves the common pain points of ordinary FPV cameras such as dark picture, severe noise and detail loss at night, fully meeting the visual needs of night flight and night inspection scenarios.
3. 960TVL HD Resolution for Sharp Details and Clear Footage
It supports 960TVL horizontal high-definition resolution, with significantly improved clarity compared to conventional 700TVL cameras. The picture has sharp edges and distinct layers, allowing pilots to clearly identify obstacles, landmarks and target objects during flight, greatly improving the control accuracy and safety of night flight. It also maintains excellent HD image quality during daytime flight, delivering outstanding all-day imaging performance.
4. Standard CVBS Analog Output for Wide Compatibility
Adopting industry-standard CVBS composite analog video output with stable signal transmission and strong anti-interference ability, it is perfectly compatible with most mainstream FPV analog VTX modules, FPV goggles, monitors, vehicle DVRs and security recorders. It is plug-and-play without additional drivers, and can be quickly adapted for both new drone assembly and old equipment upgrades.
5. Compact Lightweight Design with Industrial-Grade Reliability
The whole machine adopts a compact and lightweight design, which can be easily installed on the mounting position of mainstream FPV racing drones and fixed-wing UAVs without adding excessive weight to the aircraft. The optimized circuit design has excellent anti-electromagnetic interference capability, and can stably output clear images even in complex electromagnetic environments, suitable for various harsh application scenarios such as FPV flight, industrial monitoring and security surveillance.
Applicable Scenarios
- Visual capture for FPV drone night flight, freestyle flight and long-range flight
- Night inspection and security patrol operations of small industrial UAVs
- Vehicle mobile monitoring, home/commercial security low-light surveillance
- Low-light visual shooting scenarios such as outdoor exploration and night observation
- Maker DIY projects, robot visual perception system construction
Package Contents
- 1 × RFCAM-007 Night Vision Camera
- 1 × Matching Connection Cable
- 1 × Product User Manual
| SKU | IUAV-14252 |
|---|
