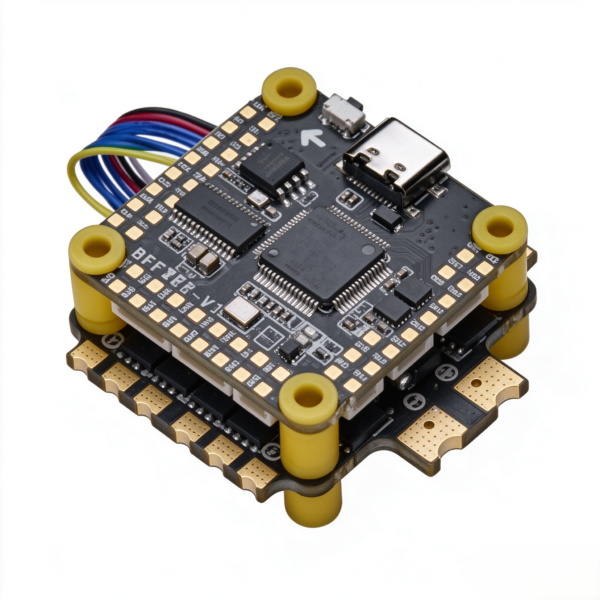

RFFS-F722-60A Flagship All-in-One FPV Flight Stack | STM32F722 FC + 60A 4-in-1 ESC | AM32 Firmware | DSHOT600 Supported | 2-6S LiPo | For 10 Inch Long-Range Aerial Drones
RFFS-F722-60A flagship all-in-one flight stack features a high-performance STM32F722 MCU, high-precision ICM42688P gyroscope and 60A 4-in-1 AM32 ESC, with DSHOT300/600 protocol support and 2-6S LiPo compatibility. With standard stack design for easy installation and powerful computing for wide tuning space, it is designed for 10-inch large FPV drones including long-range, aerial photography and freestyle models.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The RFFS-F722-60A is a high-performance stacked flight tower built for advanced FPV pilots and light industrial applications, optimized for 10-inch large FPV drones and long-endurance aerial photography aircraft. The flight controller is equipped with a flagship STM32F722 main control chip with significantly upgraded computing power compared to F4 series, paired with a high-precision ICM42688P 6-axis gyroscope. It supports higher gyro sampling rates and multi-layer dynamic filtering algorithms, delivering accurate and delicate attitude calculation for large airframes with responsive and stable flight control. The ESC runs deeply optimized AM32 open-source firmware, natively supports DSHOT300/DSHOT600 high-speed digital speed control protocols, delivers 60A continuous current per channel with abundant power reserve and excellent throttle linearity, and is compatible with 2-6S LiPo power supply.
Adopting an industry-standard integrated stack design, the flight controller and ESC are deeply pre-matched in hardware and firmware, with optimized internal wiring to reduce electromagnetic interference, enabling clean and efficient assembly wiring, and perfectly compatible with mainstream 10-inch airframes. Balancing strong computing power, abundant power and high reliability, it is widely suitable for ultra-long-range FPV drones, large-size freestyle aircraft and light aerial survey drones, making it a one-stop cost-effective solution for advanced pilots to upgrade their flight control power systems and for light industrial project selection.
Core Technical Specifications
| Category | Details |
|---|---|
| Model | RFFS-F722-60A |
| Product Type | All-in-One Flight Stack (FC + 4-in-1 ESC) |
| FC Main Controller | STM32F722 High-Performance Cortex-M7 Core MCU |
| FC Gyroscope | ICM42688P 6-Axis Gyroscope & Accelerometer |
| Supported FC Firmware | Betaflight / INAV / Emuflight and other mainstream open-source FC firmware |
| ESC Firmware | AM32 Open-Source ESC Firmware |
| Supported Speed Protocols | DSHOT300 / DSHOT600 |
| ESC Output Specs | 60A × 4 independent continuous output channels |
| Input Voltage | 2-6S Lithium Polymer Battery (LiPo) |
| Compatible Models | 10-inch FPV drones, light aerial photography / surveying multi-rotor RC models |
Core Features & Benefits
1. Flagship F722 MCU for Upgraded Computing Power & Advanced Performance
Powered by the high-performance STM32F722 Cortex-M7 core MCU, it delivers significantly higher main frequency and computing capability than mainstream F4 series flight controllers. It smoothly runs all advanced features of open-source firmware such as Betaflight and INAV, supports higher gyro refresh rates and multi-layer dynamic filtering algorithms, accurately cancels vibration interference of 10-inch large airframes, and achieves lower latency and higher accuracy in attitude calculation. It handles both stable attitude during high-speed long-range flight and precise control during aggressive freestyle maneuvers with ease, providing pilots with ample parameter tuning space.
2. Industrial-Grade High-Precision Gyroscope for Stable Attitude & Delicate Feel
Equipped with an industrial-grade ICM42688P 6-axis gyroscope and accelerometer, it features excellent low noise, high vibration resistance and minimal temperature drift. Relying on the strong computing power of the F7 main controller and optimized attitude calculation algorithm for large airframes, it delivers accurate and sensitive attitude perception, stable and smooth flight performance, no jitter or drift during aggressive maneuvers, and delicate responsive control feel, fully unlocking the flight performance potential of 10-inch models.
3. 60A High-Current AM32 ESC for Efficient & Abundant Power Output
The integrated 60A 4-in-1 brushless ESC runs deeply optimized AM32 open-source firmware, with higher driving efficiency and lower conduction loss, effectively improving the overall energy efficiency of the power system and extending long-endurance flight time. With native support for DSHOT300/DSHOT600 high-speed digital protocols, it achieves ultra-low throttle signal latency, responsive power output and delicate controllable throttle linearity. With 60A continuous output per channel and abundant peak power headroom, it can stably drive large-size brushless motors such as 2807 and 3115 specifications, fully meeting the power demands of 10-inch aircraft for long-range flight and light payload operation.
4. Standardized Stack Design for Easy Installation & Wide Compatibility
It adopts industry-standard mounting holes, with pre-matched design of flight controller and ESC, eliminating the tedious steps of self-selection, debugging and compatibility testing. The integrated internal wiring greatly reduces redundant external wiring, effectively reduces electromagnetic interference, and improves system operation stability under heavy load conditions. Perfectly compatible with mainstream 10-inch FPV drone frames and light industrial UAV airframes, it is convenient for both new drone building and existing power system upgrades.
5. Wide 2-6S Voltage Support for Full Scenario Coverage
It supports a wide input range from 2S to 6S LiPo, suitable for both low-voltage configurations for lightweight casual long-range flight and high-power demands of high-voltage high-thrust and light-payload operation. It flexibly adapts to 10-inch aircraft with different configurations, covering various application scenarios such as ultra-long-range FPV, freestyle flight, light aerial photography and small-scale surveying.
6. Reinforced Thermal Design & Multiple Protections for Long-Term Stable Operation
It adopts thick high-conductivity copper PCB layout and optimized high-current circuit design, paired with an efficient heat dissipation structure, which effectively reduces temperature rise during long full-throttle flight and ensures stable continuous output. Built-in multiple hardware and software protection mechanisms including over-current, over-voltage, under-voltage, over-temperature and stall protection fully safeguard the power system, effectively reducing flight failure risks and improving equipment service life and operational reliability.
Applicable Scenarios
- 10-inch large FPV long-range drones, BVLOS long-endurance aircraft
- Large-size freestyle FPV drones, professional aerial photography FPV platforms
- Light surveying & inspection UAVs, small industrial operation aircraft
- One-stop assembly for advanced FPV pilots, power system upgrade for older large-size models
Package Contents
- 1 × RFFS-F722-60A All-in-One Flight Stack Main Unit
- 1 × Matching Cable Set
- 1 × Product User Manual
| SKU | IUAV-14233 |
|---|
