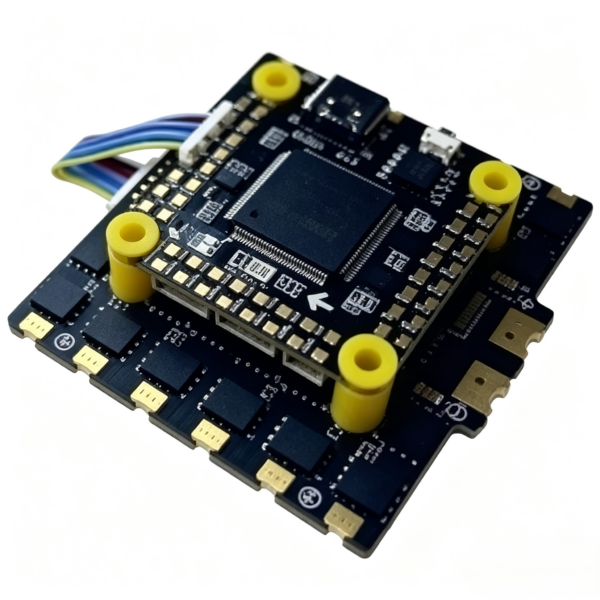

RFFS-H743-100A Flagship Industrial 100A-Class Flight Stack | STM32H743 FC + 100A 4-in-1 ESC | AM32 Firmware | DSHOT600 | 2-8S Wide Voltage | For 13/15 Inch Heavy-Duty Industrial UAVs
RFFS-H743-100A flagship industrial 100A-class flight stack features a 480MHz high-performance STM32H743 MCU, high-precision ICM42688P gyroscope and 100A high-current 4-in-1 AM32 ESC. It supports DSHOT300/600 high-speed protocols and 2-8S wide-voltage LiPo batteries. With top-tier computing power, massive power output and ultra-stable operation with easy-install stack structure, it is purpose-built for 13/15-inch heavy-duty long-range, industrial survey and heavy-load operation UAVs.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The RFFS-H743-100A is the top-tier integrated stacked flight system built for heavy-load and long-endurance industrial UAV operations, deeply customized for 13-inch and 15-inch extra-large frame heavy FPV, heavy-lift aerial photography, surveying & inspection and logistics delivery drones. Equipped with a flagship STM32H743 main controller running at 480MHz with large-capacity cache and flash memory, it delivers drastically stronger computing power and multi-task processing capability than conventional F7/F4 flight controllers. It smoothly runs professional advanced algorithms including ultra-high-rate gyro sampling, multi-layer dynamic noise filtering, complex waypoint navigation and position hold, with excellent peripheral expandability. Paired with the industrial-grade ICM42688P high-precision 6-axis gyroscope featuring ultra-low noise, minimal temperature drift and superior vibration resistance, it is deeply optimized for large-frame high-vibration conditions, delivering ultra-accurate attitude calculation and stable flight throughout heavy takeoff, long-distance cruise and gusty wind environments.
The integrated 100A 4-in-1 brushless ESC adopts deeply tuned AM32 open-source high-performance firmware, natively supporting DSHOT300/DSHOT600 high-speed digital throttle protocols for ultra-fast linear response with minimal latency. It delivers 100A continuous current per channel with massive peak power headroom, and supports wide 2-8S LiPo input with strong high-voltage power performance and excellent energy efficiency. It can easily drive large industrial brushless motors such as 4212 and 4216, fully meeting the requirements of heavy-lift takeoff, ultra-long cruise and continuous operation in complex outdoor conditions. Built with industrial standardized stacking structure, pre-matched hardware and firmware, optimized thermal system and full-range electrical protection, this flight stack ensures long-term stable full-load operation, serving as the flagship power control solution for high-end upgrades of 13/15-inch heavy drones and batch selection for industrial projects.
Core Technical Specifications
| Category | Details |
|---|---|
| Model | RFFS-H743-100A |
| Product Type | All-in-One Flight Stack (FC + 4-in-1 ESC) |
| FC MCU | STM32H743 Cortex-M7 Core, 480MHz High-Frequency Flagship MCU |
| FC Gyroscope | ICM42688P Industrial-Grade 6-Axis Gyroscope & Accelerometer |
| Supported FC Firmware | Betaflight / INAV / Emuflight and other mainstream open-source firmware |
| ESC Firmware | AM32 High-Performance Open-Source ESC Firmware |
| Speed Control Protocol | DSHOT300 / DSHOT600 |
| ESC Output | 100A × 4 Independent Continuous High-Current Output |
| Input Voltage | 2-8S Wide-Voltage LiPo Battery |
| Compatible Frame | 13/15-inch Heavy-Duty FPV, Long-Range, Industrial Survey & Agricultural Plant Protection UAVs |
Core Features & Benefits
1. Flagship H743 Ultra-High Computing Power with Full Professional Features
Powered by the industrial-grade flagship STM32H743 MCU with 480MHz high frequency and large-capacity memory, it outperforms conventional F7/F4 controllers in multi-thread computing performance. It stably supports ultra-high gyro refresh rates and advanced dynamic noise reduction filtering to eliminate large-frame vibration interference, achieving lower latency and higher precision attitude calculation. It is fully compatible with all professional advanced functions including GPS position hold, return-to-home, waypoint cruise and BVLOS long-range flight, with rich peripheral interfaces for excellent expandability, fully meeting the demands of industrial UAV complex operations and professional pilot fine tuning, with higher performance ceiling and smoother operation.
2. ICM42688P Precision Sensing for Ultra-Stable Heavy-Frame Flight
Equipped with industrial-grade ICM42688P 6-axis sensor module featuring ultra-low noise, minimal temperature drift, strong vibration resistance and high dynamic response, with specially optimized algorithm for 13/15-inch heavy-load large frames. It maintains stable attitude without drift or jitter during heavy takeoff, high-speed cruise and turbulent wind conditions, effectively solving the common instability and vague control issues of large drones, delivering delicate and responsive control feel, and greatly improving flight safety and operation accuracy.
3. 100A-Class High-Power AM32 ESC with 8S High-Voltage Heavy-Lift Performance
The upgraded 100A extra-high-current 4-in-1 brushless ESC runs deeply tuned AM32 open-source firmware, with driving algorithm specially optimized for high-voltage high-current scenarios, achieving lower conduction loss and higher energy conversion efficiency for longer endurance in high-voltage long-endurance operations. Native DSHOT300/600 support ensures ultra-low throttle signal latency and perfectly smooth linear response. With 100A continuous current per channel and abundant peak power margin, it stably drives large-size industrial brushless motors such as 4212 and 4216, calmly handling extreme working conditions like heavy-load takeoff, high-speed long-range flight and continuous high-load operation, with sufficient power reserve.
4. Ultra-Wide 2-8S Voltage Compatibility for Full Scenario Coverage
It supports full-range 2S-8S LiPo input, covering lightweight leisure long-range flight and freestyle, as well as high-voltage heavy-thrust industrial inspection and logistics delivery operations. One flight stack adapts to all medium and large flight scenarios, and flexibly matches different power configurations of 13/15-inch aircraft, balancing hobby flight and professional industrial operation with strong universality and practicability.
5. Industrial Standard Stack Design for Easy Installation & Strong Anti-Interference
It adopts industry-standard mounting holes for large-size flight stacks, with factory pre-matched flight controller and ESC in both hardware and firmware, requiring no complicated debugging for quick assembly by users of all levels. The integrated internal wiring greatly reduces external cable clutter and electromagnetic interference, significantly improving system stability under high-voltage and heavy-load long-time operation. It is fully compatible with mainstream 13/15-inch large airframes for seamless new drone building and existing power system upgrades.
6. Reinforced Thermal Design & Multiple Hardcore Protections for Industrial Long-Term Reliability
It adopts thick high-conductivity copper PCB and optimized high-current circuit layout, paired with a large-area high-efficiency heat dissipation structure, which quickly dissipates heat generated during full-load operation, avoiding high-temperature frequency reduction, power attenuation and overheating protection. Built-in multiple hardware and software protection mechanisms including over-current, over-voltage, under-voltage, over-temperature, stall and short-circuit protection fully safeguard equipment and flight safety, suitable for high-intensity and long-time continuous industrial operation scenarios, with greatly improved durability and reliability.
Applicable Scenarios
- 13/15-inch extra-heavy-load FPV drones, BVLOS ultra-long-range UAVs
- Industrial high-precision surveying, power/oil pipeline inspection, emergency rescue UAVs
- Heavy-lift professional aerial photography, film shooting and medium logistics delivery drones
- Agricultural plant protection, forest inspection, outdoor exploration special multi-rotor aircraft
- High-end large-frame drone flagship upgrades, industrial UAV power system batch iteration
Package Contents
- 1 × RFFS-H743-100A All-in-One Flight Stack Main Unit
- 1 × Matching Cable Set
- 1 × Product User Manual
| SKU | IUAV-14250 |
|---|
