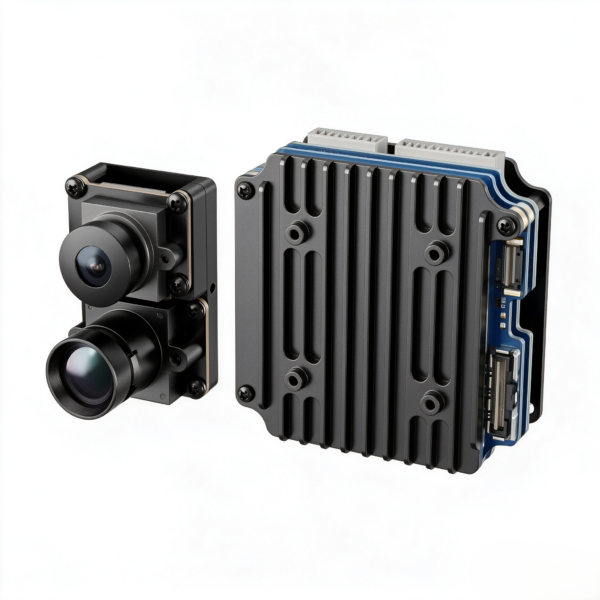

XHTD75CC Split-Type Dual-Visible Light AI Tracking Module | Long-focus + Short-focus Dual Lenses | Person/Vehicle Recognition | Target Tracking & Positioning | Ultra-Light Low-Power | Visual Module for Micro UAVs
XHTD75CC split-type dual-visible light AI tracking module features long-focus + short-focus dual lenses, with 600m long-distance recognition and 113° wide-angle coverage. Built-in AI enables automatic person/vehicle recognition, real-time tracking and 10m-class target positioning. With ultra-light split design (20g camera + 42g tracker), low power consumption and industrial-grade wide temperature specification, it is specially designed for visual upgrade of micro UAVs and small carriers.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The XHTD75CC is a split-type dual-visible light AI tracking vision module designed for micro UAVs, small inspection robots and lightweight security devices. It adopts a separated design of camera unit and AI tracker, which can be flexibly adapted to various small carriers with limited space, delivering professional long-distance observation, intelligent target recognition and tracking & positioning capabilities with ultra-lightweight design.
It is equipped with two independent visible light sensors: the long-focus end adopts a 1/3.52-inch CMOS with a 16.26mm focal length lens. Under daytime visibility ≥8km, the recognition distance for adult targets can reach more than 600 meters, suitable for long-distance detail observation and precise reconnaissance. The short-focus end adopts a 1/4-inch CMOS with a 1.75mm ultra-wide-angle focal length, with a field of view of 113.1°×63.6°, covering a wide global field of view for scene inspection and environmental perception. The two channels simultaneously output 1080P@50fps HD video and 720P@100fps high-frame-rate footage to flexibly meet the observation needs of different scenarios.
Built-in high-performance AI computing unit supports automatic recognition, real-time tracking and on-screen marking of person and vehicle targets, with recognition accuracy ≥85%. Combined with the target positioning function with CEP 10m accuracy, it can automatically lock and track targets and output position information, greatly improving the operation efficiency and response speed of inspection, security and reconnaissance scenarios.
With an extremely lightweight design, the camera unit weighs only 20g and the AI tracker weighs only 42g. The split structure allows flexible installation layout. With steady-state power consumption ≤5W, 10.8V-26.4V wide-voltage power supply and -20℃~55℃ operating temperature range, it delivers industrial-grade reliability for various complex outdoor working conditions, making it a cost-effective ideal solution for visual upgrade of micro carriers.
Core Technical Specifications
1. Camera Parameters
| Parameter | Long-Focus Visible Channel | Short-Focus Visible Channel |
|---|---|---|
| Image Sensor | 1/3.52″ CMOS | 1/4″ CMOS |
| Focal Length | 16.26mm | 1.75mm |
| Field of View (FOV) | 14.8°(H) × 8.4°(V) (±5%) | 113.1°(H) × 63.6°(V) (±5%) |
| Pixel Size | 2.2μm×2.2μm | 2.7μm×2.7μm |
| Photo Resolution | 1920×1080 | 1280×720 |
| Video Resolution | 1920×1080@50fps | 1280×720@100fps |
| Recognition Range | >600m for adults (daytime visibility ≥8km) | >80m for adults (daytime visibility ≥8km) |
2. AI & Function Parameters
| Parameter | Details |
|---|---|
| Autonomous Recognition Types | Person, Vehicle |
| Recognition Accuracy | ≥85% |
| Target Positioning Accuracy | CEP 10m |
| Core Functions | Automatic target recognition, real-time tracking, on-screen marking |
| Video Encoding | H.264 / H.265 |
| Video Bitrate | 2Mbps / 4Mbps |
3. Basic Specifications
| Parameter | Details |
|---|---|
| Weight | Camera unit: 20g±2g; AI tracker: 42g±2g |
| Dimensions | Camera unit: 38mm×26mm×28mm; AI module: 52mm×53mm×22mm |
| Video Output | Ethernet, CVBS |
| Control Interface | UartTTL, Ethernet |
| Power Supply | DC 10.8V ~ 26.4V @ 3A, steady-state power ≤5W |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -45℃ ~ +60℃ |
Core Features & Benefits
1. Dual-Lens Combination for Full Range Coverage
Adopting an integrated dual-lens design, the long-focus end focuses on long-distance details, clearly recognizing human targets 600 meters away for precise reconnaissance and detailed inspection. The short-focus end provides a 113° ultra-wide field of view, covering large-scale scenes for global patrol and environmental perception. Two views can be switched on demand, and one device meets both wide-range patrol and long-distance observation needs, greatly improving operation efficiency.
2. All-in-One AI Recognition, Tracking & Positioning
Built-in high-performance AI computing unit with deep learning algorithm supports automatic recognition, real-time tracking and on-screen marking of person and vehicle targets with ≥85% accuracy. Combined with CEP 10m target positioning, it can automatically lock and track targets and output position information, greatly reducing manual observation pressure and significantly improving operation efficiency and response speed in security patrol, inspection and search & rescue scenarios.
3. Split Ultra-Lightweight Design for Micro Carriers
Adopting a separated structure of camera unit and AI tracker, the camera unit weighs only 20g and the AI tracker weighs only 42g. With compact size, it barely adds weight burden to micro UAVs and small robots. The split design can flexibly adapt to the internal space layout of carriers, greatly lowering the mounting threshold, and can be easily embedded into various micro multi-rotor UAVs, fixed-wing aircraft and ground inspection robots.
4. Low-Power Wide-Temperature Design for Industrial Reliability
With steady-state power consumption of only ≤5W, the low-power design effectively extends the endurance of carriers. It supports 10.8V-26.4V wide-voltage power supply, compatible with various batteries and power systems. The operating temperature covers -20℃~55℃ and storage temperature reaches -45℃~60℃, with excellent environmental adaptability for stable operation in complex outdoor conditions such as low temperature and high temperature.
5. Standard Interfaces for Easy System Integration
It supports dual video output via Ethernet and CVBS, which can be flexibly connected to flight controllers, displays and video recorders. The control interface is compatible with UartTTL and Ethernet protocols, enabling flexible control via remote controller, flight controller or upper computer. It is easy to integrate and quickly embed into various complete systems and customized projects.
Applicable Scenarios
- Lightweight visual upgrade for micro UAVs and racing drones, low-altitude reconnaissance and patrol missions
- Visual perception module for small ground inspection robots and mobile security devices
- Airborne observation and target tracking for fixed-wing UAVs and small model aircraft
- Maker DIY, educational research and competition robot vision system construction
- Fixed security monitoring, low-power field monitoring station visual unit
Package Contents
- 1 × XHTD75CC Dual-Light Camera Unit
- 1 × AI Tracking & Control Module
- 1 × Matching Cable Set
- 1 × Mounting Accessory Kit
- 1 × Product User Manual
| SKU | IUAV-14266 |
|---|
