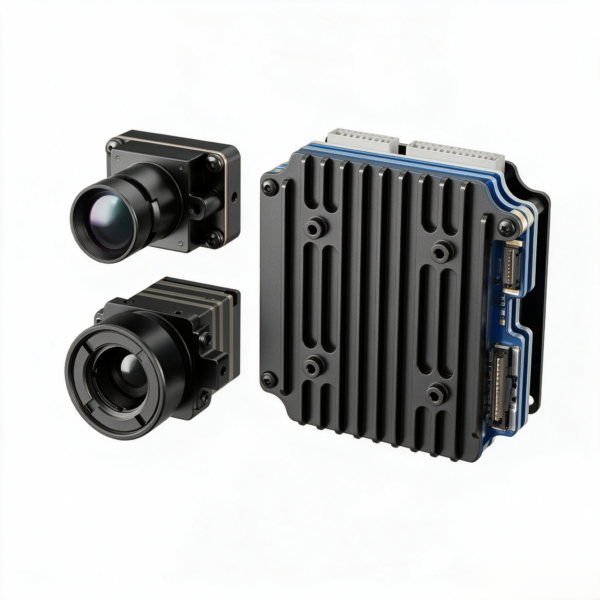

XHTD75CLT Split-Type Dual-Light AI Tracking Module | Long-Focus Visible Light + Infrared Thermal Imaging | Person/Vehicle Recognition & Tracking | Target Positioning | Ultra-Light Low-Power | Day-Night Visual Module for Micro UAVs

★★★★★ New · 0 reviews

XHTD75CLT split-type dual-light AI tracking module features long-focus visible light + long-wave infrared thermal imaging dual lenses, with 600m daytime and 230m night target recognition for all-weather day-night operation. Built-in AI enables automatic person/vehicle recognition, real-time tracking and 10m-class target positioning. With ultra-light split design (35g camera + 42g tracker), low power consumption and industrial-grade wide temperature specification, it is specially designed for all-weather visual upgrade of micro UAVs and small carriers.

View Product Options

★ Pilot RewardsEarn Pilot Points with this purchase

Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.

Product Overview

The XHTD75CLT is a split-type dual-light AI tracking vision module designed for micro UAVs, small inspection robots and lightweight security devices. It integrates a long-focus visible light + long-wave infrared thermal imaging dual imaging system, completely breaking through the limitations of light environment to achieve true 24/7 all-weather observation, intelligent target recognition and tracking & positioning capabilities. The split structure of camera unit + AI tracker can be flexibly adapted to various small carriers with limited space, meeting professional day and night operation requirements with ultra-lightweight design.

It is equipped with two independent imaging sensors: the long-focus visible light end adopts a 1/3.52-inch CMOS with a 16.26mm focal length lens. Under daytime visibility ≥8km, the recognition distance for adult targets can reach more than 600 meters; in urban low-light night environment, the recognition distance exceeds 100 meters, balancing daytime HD detail observation and night low-light reconnaissance. The infrared thermal imaging end adopts an 8-14μm long-wave infrared sensor with a 10mm focal length lens and 12μm high-precision pixel unit. Under night visibility ≥8km, the recognition distance for adult targets exceeds 100 meters, and for vehicle targets reaches more than 230 meters. It can accurately capture targets in extremely low-visibility environments such as complete darkness, dense fog and thick smoke. Both channels support 50fps smooth video output, balancing picture clarity and dynamic performance.

Built-in high-performance AI computing unit supports automatic recognition, real-time tracking and on-screen marking of person and vehicle targets, with recognition accuracy ≥85%. Combined with the target positioning function with CEP 10m accuracy, it can automatically lock and track targets and output position information, greatly improving the operation efficiency and response speed of day-night inspection, security patrol and emergency search & rescue scenarios.

With an extremely lightweight split design, the camera unit weighs only 35g and the AI tracker weighs only 42g for flexible installation. With steady-state power consumption ≤5W, 10.8V-26.4V wide-voltage power supply and -20℃~55℃ operating temperature range, it delivers industrial-grade reliability for various complex outdoor working conditions, making it a cost-effective ideal solution for all-weather visual upgrade of micro carriers.

Core Technical Specifications

1. Camera Parameters

Parameter	Long-Focus Visible Channel	Infrared Thermal Imaging Channel
Sensor Spec	1/3.52″ CMOS	8-14μm Long-Wave Infrared
Focal Length	16.26mm	10mm
Field of View (FOV)	14.8°(H) × 8.4°(V) (±5%)	16.9°(H) × 12.8°(V) (±5%)
Pixel Size	2.2μm×2.2μm	12μm
Photo Resolution	1920×1080	384×288
Video Resolution	1920×1080@50fps	384×288@50fps
Recognition Range	Daytime (visibility ≥8km): Adult >600m Night urban low-light: Adult >100m	Night (visibility ≥8km): Adult >100m / Vehicle >230m

2. AI & Function Parameters

Parameter	Details
Autonomous Recognition Types	Person, Vehicle
Recognition Accuracy	≥85%
Target Positioning Accuracy	CEP 10m
Core Functions	Automatic target recognition, real-time tracking, on-screen marking
Video Encoding	H.264 / H.265
Video Bitrate	2Mbps / 4Mbps

3. Basic Specifications

Parameter	Details
Weight	Camera unit: 35g±2g; Servo controller + tracker: 42g±2g
Dimensions	Camera unit: 30mm×30mm×34mm; AI module: 53mm×52mm×22mm
Video Output	Ethernet, CVBS
Control Interface	UartTTL, Ethernet
Power Supply	DC 10.8V ~ 26.4V @ 3A, steady-state power ≤5W
Operating Temperature	-20℃ ~ +55℃
Storage Temperature	-45℃ ~ +60℃

Core Features & Benefits

1. Dual-Light Fusion for True All-Weather Day & Night Operation

Integrates long-focus visible light and long-wave infrared thermal imaging dual imaging system. It relies on visible light for HD detail observation and long-distance recognition during the day, and captures targets through infrared thermal sensing in night / low-visibility environments, coping with extreme scenarios such as complete darkness, dense fog and thick smoke. One set of equipment realizes all-time and all-weather operation capability, greatly expanding the boundary of usage scenarios.

2. All-in-One AI Recognition, Tracking & Positioning for Boosted Efficiency

Built-in high-performance AI computing unit with deep learning algorithm supports automatic recognition, real-time tracking and on-screen marking of person and vehicle targets with ≥85% accuracy. Combined with CEP 10m target positioning, it can automatically lock and track targets and output position information, greatly reducing manual observation pressure and significantly improving operation efficiency and response speed in security patrol, inspection and emergency search & rescue scenarios.

3. Split Ultra-Lightweight Design for Micro Compact Carriers

Adopting a separated structure of camera unit and AI tracker, the camera unit weighs only 35g and the AI tracker weighs only 42g. With compact size, it barely adds weight burden to micro UAVs and small robots. The split design can flexibly adapt to the internal space layout of carriers, greatly lowering the mounting threshold, and can be easily embedded into various micro multi-rotor UAVs, fixed-wing aircraft and ground inspection robots.

4. Low-Power Wide-Temperature Design for Industrial Reliability

With steady-state power consumption of only ≤5W, the low-power design effectively extends the endurance of carriers. It supports 10.8V-26.4V wide-voltage power supply, compatible with various batteries and power systems. The operating temperature covers -20℃~55℃ and storage temperature reaches -45℃~60℃, with excellent environmental adaptability for stable operation in complex outdoor conditions such as low temperature and high temperature.

5. Standard Interface Protocols for Easy Integration

It supports dual video output via Ethernet and CVBS, which can be flexibly connected to flight controllers, displays and video recorders. The control interface is compatible with UartTTL and Ethernet protocols, enabling flexible control via remote controller, flight controller or upper computer. It is easy to integrate and quickly embed into various complete systems and customized projects.

Applicable Scenarios

Day-night security patrol, low-altitude reconnaissance and emergency night search & rescue for micro UAVs
All-weather visual acquisition for small power/pipeline inspection UAVs and field monitoring equipment
Day-night visual perception module for ground inspection robots and mobile security devices
Airborne day-night observation and target tracking for fixed-wing UAVs and small model aircraft
Maker DIY, educational research and competition robot vision system construction
Visual unit for fixed security monitoring and low-power field unattended monitoring stations

Package Contents

1 × XHTD75CLT Dual-Light Camera Unit
1 × AI Tracking & Control Module
1 × Matching Cable Set
1 × Mounting Accessory Kit
1 × Product User Manual
