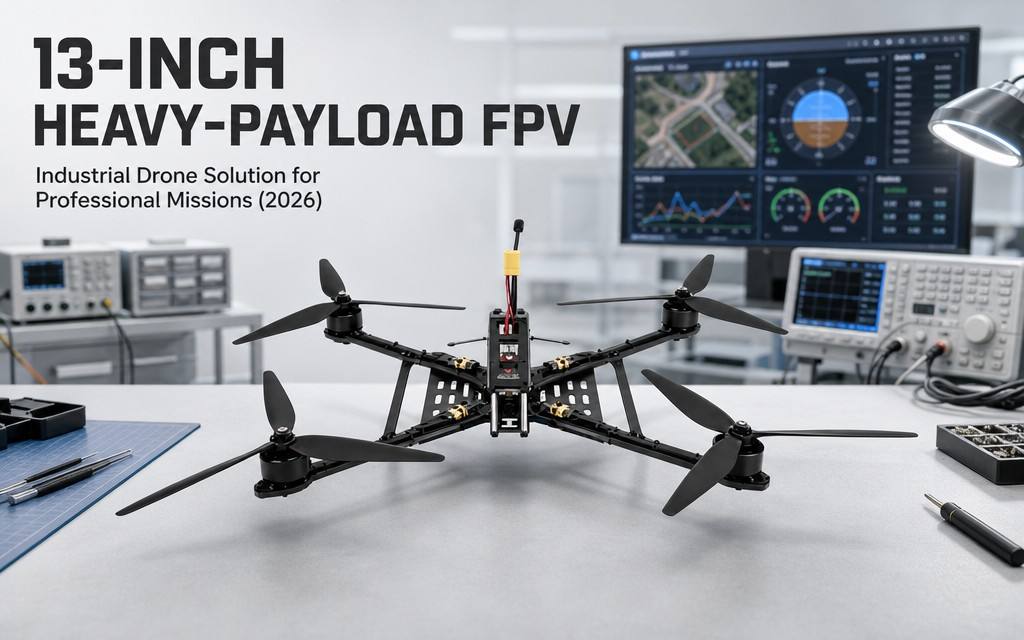

13-Inch FPV Heavy-Payload Industrial Drone Solution | 8kg Max Payload & 8S High-Voltage Powertrain, Covering Survey / Logistics / Inspection / Emergency Scenarios
Solution Overview This solution takes the 13-inch FPV heavy-payload industrial drone as the core operational platform. Leveraging its 13-inch large airframe heavy-load design, 8S high-voltage powertrain, 8kg maximum / 6kg standard operating payload capacity, heavy-load tuned…
Solution Overview
This solution takes the 13-inch FPV heavy-payload industrial drone as the core operational platform. Leveraging its 13-inch large airframe heavy-load design, 8S high-voltage powertrain, 8kg maximum / 6kg standard operating payload capacity, heavy-load tuned powertrain with F405 FC and 4214 high-torque motors, 10–15 minute loaded endurance, multi-band high-power long-range video link and ELRS long-range receiver system, it provides high-capacity, high-reliability, cost-effective unmanned operation solutions for four core heavy-duty scenarios: professional surveying & exploration, heavy-load logistics & precision delivery, industrial heavy-load inspection & monitoring, and emergency rescue & operation support. It addresses core industry pain points such as insufficient payload of small and medium drones, poor heavy-load performance of low-voltage systems, excessive cost of large industrial UAVs and weak adaptability in complex industrial environments, achieving the optimal balance of efficiency, cost and reliability in medium-heavy load operation scenarios.
Four Common Pain Points in Medium-Heavy Industrial Operations
- Insufficient payload of small and medium drones: FPV drones of 10 inches and below generally have a payload under 5kg, unable to carry heavy survey equipment, bulk supplies and professional detection devices, falling short in medium-heavy duty tasks.
- Poor heavy-load performance of low-voltage powertrains: 6S low-voltage powertrains have insufficient power reserve under heavy load, with poor climb, wind resistance and endurance performance, struggling to sustain continuous heavy-duty operations.
- Excessive cost of professional equipment: Large industrial-grade UAVs have high procurement and maintenance costs, delivering very poor value for medium-scale professional tasks. Many scenarios still rely on high-risk, low-efficiency manual operations.
- Poor adaptability in complex environments: Industrial scenarios have strong electromagnetic interference and many building obstructions, causing common video links to drop out. Standard cameras produce poor image quality in low light, limiting night and complex scenario operations.
Four Custom Scenario Solutions
Scenario 1: Professional Surveying & Exploration Solution
Applicable scenarios: Large-area topographic mapping, engineering survey, mine survey, land resource investigation, large construction progress monitoring
Pain Points
- Small and medium drones have insufficient payload to carry high-precision survey equipment and positioning systems, failing to meet professional mapping accuracy standards.
- Professional surveying UAVs are expensive and process-heavy, delivering very poor value for medium-scale survey tasks.
- Small drones lack sufficient endurance for large survey areas, requiring multiple takeoffs and landings with large stitching errors and low efficiency.
Solution Configuration
| Category | Configuration | Description |
|---|---|---|
| Operation Drone | 13-inch FPV heavy-payload industrial drone (Survey edition) | F405 FC, 4214 motor KV330, 80A AM32 high-voltage ESC, 1700TVL starlight camera, multi-band high-power VTX, ELRS 915M long-range receiver |
| Survey Payload | Professional-grade orthophoto camera, high-precision RTK positioning module, oblique photography system | 8kg max payload carries heavy survey equipment, meeting high-accuracy requirements for large survey areas |
| Ground Terminal | Professional ground receiving station, survey data processing terminal | Integrated real-time image return, pre-processing and mapping processing |
| Power Supply | 8S 12000mAh LiPo ×5 + balance charger | 10–15 minutes endurance at 6kg payload; multiple packs for continuous field operation |
| Auxiliary Equipment | Survey marking tools, industrial protective case, spare wear parts | Convenient field operations with proper equipment protection |
Operation Process
- Survey area planning: Plan flight routes, overlap, altitude and camera parameters according to survey scope and accuracy requirements.
- Aerial acquisition: Drone flies along planned routes, collecting images and positioning data simultaneously; monitor signal and flight status in real time.
- Quality check: Check data integrity and overlap after each sortie, re-shoot missing and substandard areas.
- Office processing: Import data for stitching and correction to generate orthophotos, topographic maps, 3D models and other survey deliverables.
Solution Value
- 8kg maximum payload carries professional-grade survey equipment and positioning modules, with mapping accuracy meeting medium-large engineering specifications.
- 8S high-voltage powertrain delivers abundant power under heavy load, improving efficiency by more than 10 times compared with manual surveying for large areas.
- Procurement cost is much lower than professional survey drones, delivering outstanding cost performance for medium-scale survey tasks with greatly shortened project cycles.
Scenario 2: Heavy-Load Logistics & Precision Delivery Solution
Applicable scenarios: Construction site heavy material transfer, mountain camp bulk supply, island station material transportation, emergency equipment precision delivery
Pain Points
- In mountains, construction sites and islands with no or poor road access, heavy tools and bulk supplies rely on manual labor or large machinery with low efficiency, high cost and inflexible scheduling.
- Small and medium drones have insufficient payload, only able to transfer light items, unable to handle heavy components and bulk supplies by air.
- Traditional ground transport is heavily affected by terrain and weather, unable to guarantee stable operation rhythm, with hard-to-control schedules and costs.
Solution Configuration
| Category | Configuration | Description |
|---|---|---|
| Operation Drone | 13-inch FPV heavy-payload industrial drone (Logistics edition) | F405 FC, 4214 motor, 80A high-voltage ESC, starlight camera, multi-band high-power VTX, ELRS 915M long-range receiver |
| Mount System | Custom heavy-duty cargo sling / precision delivery mechanism | Up to 8kg payload, adapting to boxed, bagged goods and heavy tools; secure mounting ensures flight safety |
| Dispatch Terminal | Factory / site dispatch command terminal | Multi-point demand docking, intelligent route planning, operation scheduling management |
| Power Supply | 8S 12000mAh LiPo ×6 + balance charger | ~10–15 minutes endurance at standard payload per pack; multiple packs for continuous operation |
| Auxiliary Equipment | Industrial protective case, spare propellers, fixing straps | Outdoor transition protection; spares ensure continuous operation |
Operation Process
- Demand submission: Each work station submits transfer requests, specifying material weight, origin/destination and time requirements.
- Dispatch planning: The dispatch system plans optimal routes, assigns drone tasks and avoids buildings, cables, mountains and other obstacles.
- Point-to-point transfer / delivery: The drone flies autonomously after loading, lands precisely at the target point for unloading, or releases supplies precisely at the target area.
- Record management: The system automatically records transfer tasks, weights and durations, generating operation logs and cost accounting.
Solution Value
- 8kg maximum payload covers the transfer needs of most industrial heavy tools and bulk supplies, with wide scenario adaptability.
- Free from terrain and road constraints, point-to-point direct transfer improves efficiency by 5–7 times and reduces comprehensive cost by more than 50% compared with manual labor.
- 13-inch large airframe + 8S high-voltage power delivers stable heavy-load flight attitude with high cargo transfer safety.
- Multi-band long-range VTX maintains stable signal in mountain and factory obstructed environments with wide operating radius coverage.
Scenario 3: Industrial Heavy-Load Inspection & Monitoring Solution
Applicable scenarios: Heavy power equipment inspection, petrochemical plant flaw detection, large infrastructure special inspection, factory security patrol & monitoring
Pain Points
- Heavy detection and flaw detection equipment is too heavy for small and medium drones. Manual inspection involves high labor intensity, high risk and long operation cycles.
- 4-axis drones have poor heavy-load stability, with shaky inspection footage and insufficient data accuracy.
- Complex electromagnetic environments in factories and stations cause common drones to lose video signal, breaking inspection continuity.
Solution Configuration
| Category | Configuration | Description |
|---|---|---|
| Operation Drone | 13-inch FPV heavy-payload industrial drone (Inspection edition) | F405 FC, 4214 motor, 80A high-voltage ESC, starlight camera, multi-band adjustable-power VTX, ELRS 915M receiver |
| Inspection Payload | Medium thermal imager, ultrasonic flaw detection module, high-precision gas detection sensor | 6kg standard payload carries various heavy detection devices for professional inspection needs |
| Ground Terminal | Industrial ground receiving station, inspection data analysis terminal | Real-time video return, defect identification, test data recording and analysis |
| Power Supply | 8S 12000mAh LiPo ×5 + balance charger | Covers all-day inspection; multiple packs for rotation |
| Auxiliary Equipment | Equipment calibration tools, industrial protective case, spare wear parts | Equipment calibration, outdoor protection, spare support |
Operation Process
- Inspection planning: Plan inspection routes, key detection points and flight parameters based on station and pipeline distribution.
- Cruise inspection: Drone flies along the planned route, carrying inspection equipment to collect data simultaneously, transmitting real-time footage and test results.
- Defect marking: Mark locations, record data and log parameters when equipment defects and abnormal conditions are found.
- Report generation: Export data after inspection, generate professional test reports, and sort out defect levels and rectification suggestions.
Solution Value
- 6kg standard payload meets heavy detection equipment requirements, with far higher inspection professionalism than small and medium drones.
- Large-wheelbase high-voltage platform delivers steady footage during heavy-load inspection with high detection accuracy and reliable results.
- ELRS long-range receiver + multi-band high-power VTX deliver stable signal in complex electromagnetic and obstructed environments for uninterrupted inspection.
- Procurement cost is much lower than professional industrial inspection drones, delivering excellent value for medium-scale station inspection.
Scenario 4: Emergency Rescue & Operation Support Solution
Applicable scenarios: Emergency rescue equipment delivery, disaster site supply drop, fire scene reconnaissance, field operation support
Pain Points
- Disasters and accidents block roads, making ground transport impossible. Manual delivery involves high risk, slow speed and low payload.
- Small and medium drones have insufficient payload, only able to deliver light supplies, unable to handle heavy rescue equipment and bulk relief.
- Heavy on-site smoke and building obstruction cause common drones to lose signal and produce blurry footage with poor operational accuracy.
Solution Configuration
| Category | Configuration | Description |
|---|---|---|
| Operation Drone | 13-inch FPV heavy-payload industrial drone (Emergency edition) | F405 FC, 4214 motor, 80A high-voltage ESC, starlight camera, high-power multi-band VTX, ELRS 915M receiver |
| Mission Payload | Heavy-duty delivery mechanism, emergency lighting module, long-range loudspeaker | Up to 8kg delivery payload, adapting to emergency supplies, equipment and tool drops |
| Command Terminal | Portable ground command station, HD display | Frontline command views live site footage in real time to direct operations |
| Power Supply | 8S 12000mAh LiPo ×4 + fast charger | Quick battery swaps for continuous operations |
| Auxiliary Equipment | Portable protective case, spare wear parts, lighting module | Rapid deployment, night operation assistance |
Operation Process
- Rapid deployment: Quickly assemble and take off after arriving on scene, rapidly reach target area for aerial reconnaissance.
- Demand confirmation: Transmit real-time site footage to confirm delivery points, material types and weights.
- Precision delivery: Plan delivery route and altitude, release supplies precisely after reaching the target area.
- Continuous operation: Rotate batteries for sustained operations, completing multiple batches of delivery and reconnaissance as required.
Solution Value
- 8kg maximum payload delivers heavy rescue equipment and bulk supplies, with far stronger delivery capability than small and medium drones.
- 8S high-voltage powertrain provides abundant power reserve for high reliability in complex environments and gusty conditions.
- ELRS 915M long-range receiver + high-power VTX deliver stable signal in smoke, obstructed and complex environments with long delivery range and high accuracy.
- Moderate size and rapid deployment, deployable by grassroots emergency, fire and rescue teams to quickly improve emergency response capability.
5-Step Solution Implementation Process
- Demand research and solution customization: Investigate operation scenarios, core demands and environmental conditions, and customize corresponding payloads, configurations and operation processes.
- Equipment deployment and training: Deliver and commission equipment, conduct operation training, safety training and scenario-based practical training.
- Trial operation and parameter optimization: Conduct on-site trial operation, and adjust FC parameters, VTX power and route logic based on actual performance.
- Formal operation and process standardization: Launch formal operations, and standardize operating procedures, management specifications and emergency plans.
- Operation & maintenance support and iterative optimization: Provide regular maintenance and spare parts support, and iteratively optimize solution configurations according to business development.
Core Solution Values
✅ Outstanding payload capacity: 8kg max / 6kg standard payload covers most medium-heavy industrial operational needs, balancing payload and maneuverability.
✅ 8S high-voltage powertrain: 8S high-voltage system with 4214 high-torque motors delivers abundant power and stability under heavy load.
✅ Excellent loaded endurance: 10–15 minutes endurance at 6kg payload, meeting medium-range operational duration requirements.
✅ Stable long-range signal: Multi-band high-power VTX + ELRS long-range receiver with strong anti-interference in industrial environments for stable medium-range operations.
✅ Wide scenario coverage: Covers four heavy-load scenarios: survey, logistics, inspection and emergency, all in one drone with strong adaptability.
✅ Significant cost advantage: Procurement and maintenance costs are much lower than large industrial UAVs, delivering the best return for medium-scale heavy-duty tasks.
Tiered Configuration Procurement Advice
- Entry heavy-load edition: Base configuration + 2.4G ELRS + standard VTX + 3 batteries, suitable for entry-level heavy-load operation and advanced flight training.
- Professional survey edition: Tuned configuration + 915M long-range receiver + high-power VTX + 5 batteries + professional survey payload, suitable for engineering survey and exploration.
- Logistics delivery edition: Standard configuration + 915M receiver + high-power VTX + 6 batteries + heavy cargo mount, suitable for construction site and factory heavy-load logistics transfer.
- Team operation edition: Multi-drone fleet + monitoring command system + bulk spares + charging system, suitable for organizational scaled professional operations.
