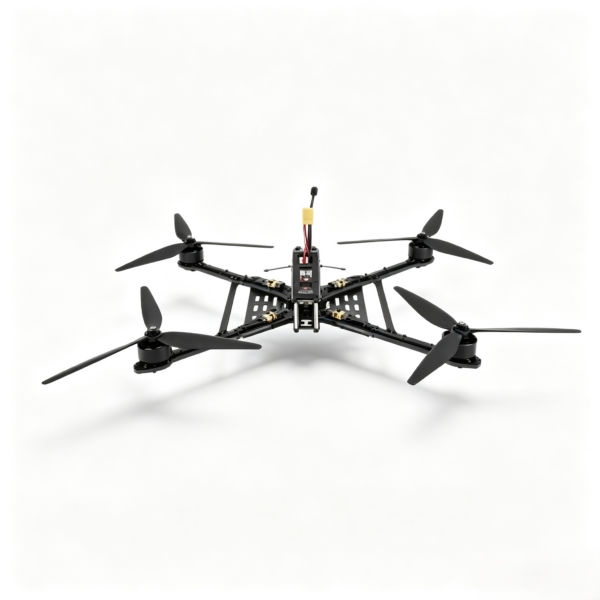

13-Inch FPV Heavy Payload Industrial Drone | 8S High-Voltage 8kg Long-Range Quadcopter

13-Inch FPV Heavy Payload Industrial Drone | 8S High-Voltage 8kg Long-Range Quadcopter

This 13-inch FPV drone is an industrial-grade heavy-payload quadcopter built for professional operation scenarios. It adopts a 13-inch large airframe and 8S high-voltage powertrain with sufficient power reserve. It supports 6kg standard payload and up to 8kg maximum payload, compatible with professional cameras, mapping equipment, delivery devices, sensors and various mission payloads.

Under the working condition of 6kg payload, 8S 12000mAh battery and 120km/h flight speed, it still achieves 10-15 minutes of flight time, balancing payload capacity and operation endurance, serving as a cost-effective aerial platform for heavy-payload FPV operations.

It is equipped with an F405 high-performance flight controller with ICM42688P high-precision gyroscope for stable and precise flight attitude. The 80A AM32 high-voltage ESC and 4214 high-torque motors deliver strong and linear power output with excellent heavy-load performance. The 1700TVL starlight camera and multi-band high-power VTX provide clear operation footage. Paired with ELRS long-range receiver system and high-gain antenna, it features strong anti-interference signal, suitable for professional aerial mapping, material delivery, industrial inspection, emergency rescue and other heavy-load operation scenarios.

✨ Key Product Features
- ✅ 13-Inch Heavy-Payload Airframe: 6kg standard payload, up to 8kg maximum payload, strong mounting capacity, compatible with various professional mission payloads
- ✅ 8S High-Voltage Powertrain: 80A AM32 high-voltage ESC paired with 4214 high-torque motors, sufficient power reserve for reliable heavy-load flight
- ✅ Long Flight Time Under Load: 10-15 minutes flight time with 6kg payload, 8S 12000mAh battery at 120km/h flight speed
- ✅ F405 High-Performance Flight Controller: Built-in ICM42688P high-precision gyroscope, stable flight attitude and linear control response, ideal for heavy-load operation
- ✅ 1700TVL Starlight Camera: 1/2.7-inch starlight CMOS sensor, clear image in low-light conditions, complete detail presentation for operation scenarios
- ✅ Multi-Band High-Power VTX: Supports 3.3G/4.9G/5.8G/6.5G frequency bands, 1.6W/2.5W/4W adjustable power, stable long-distance transmission
- ✅ ELRS Long-Range Receiver: Optional ELRS 915M / 2.4G receiver with long-range high-gain RHCP antenna, strong anti-interference signal
- ✅ Industrial Expandability: XT90 high-current battery connector, 20×400mm wide battery strap, supports large-capacity batteries for long-duration operations

📋 Full Product Specifications
| Category | Specification |
| ---- | ---- |
| Product Type | 13-inch FPV Heavy-Payload Industrial Drone |
| Wheelbase | 560mm |
| Frame Size | 405 × 507mm |
| Flight Controller | F405 FC; Gyroscope: ICM42688P; Mounting hole: 30.5×30.5mm |
| ESC | 80A AM32 high-voltage ESC; Input: 8S / 33.6V; 80A continuous current, 90A peak current (10s) |
| Camera | 1700TVL; 1/2.7-inch starlight CMOS sensor |
| VTX (Video Transmitter) | Multi-band: 3.3G/4.9G/5.8G/6.5G; Output power: 1.6W/2.5W/4W adjustable |
| Motor | 4214 brushless motor; KV: 330 (customizable); Input: 33.6V (8S) |
| Propeller | 1308 3-blade propeller |
| Antenna | Long-range high-gain RHCP antenna |
| Battery Strap | 20 × 400mm wide battery strap |
| Receiver | Optional ELRS 915M / 2.4G receiver |
| Weight | ≈2.0kg (battery excluded) |
| Battery Connector | XT90 high-current connector |
| Standard Payload | 6.0kg |
| Max Payload | 8.0kg |
| Flight Time | 10-15 mins (with 6kg payload, 8S 12000mAh battery, 120km/h flight speed) |

🎯 Application Scenarios
This 13-inch FPV heavy-payload drone is widely used for professional industrial scenarios: heavy-payload professional aerial photography, topographic mapping & survey, emergency precision material delivery, power & solar industrial inspection, security patrol & reconnaissance, agricultural plant protection, small equipment aerial transportation, construction site survey. Ideal for professional operation teams, surveying institutions, emergency departments and industrial FPV operators.

📦 Packaging & Shipping
- Industrial shockproof protective packaging with multi-layer foam, protects precision components like FC and motors from damage during long-distance transit
- Supports retail, project bulk orders and customized configuration orders
- Optional accessories: FPV goggles, 8S 12000/16000mAh LiPo batteries, TX12/T14 remote controller, M6AC charger and more
- Domestic and international shipping available, exclusive logistics solutions negotiable for bulk orders

❓ Frequently Asked Questions FAQ
Q1: What is the payload capacity? What is the maximum load?
A: 6kg standard payload and up to 8kg maximum payload. It can carry various operation equipment such as professional cameras, mapping sensors and small delivery devices, meeting various heavy-load flight requirements.

Q2: How long is the flight time under payload?
A: Approximately 10-15 minutes under test conditions: 6kg payload, 8S 12000mAh battery at 120km/h flight speed. Flight time can be further extended with reduced payload or larger capacity batteries.

Q3: What voltage system does it use? What is the battery connector?
A: It adopts an 8S high-voltage powertrain with 33.6V input. The battery connector is XT90 high-current interface, supporting large-capacity batteries to ensure power supply for heavy-load flight.

Q4: What frequency bands and power levels does the VTX support?
A: It supports multiple frequency bands including 3.3G/4.9G/5.8G/6.5G, with 3 power levels: 1.6W / 2.5W / 4W. You can select the appropriate band and power according to operation distance, scenario and local regulations.

Q5: Is it ready-to-fly out of the box? What else do I need?
A: The drone comes fully assembled and factory tuned. You will need FPV goggles, a remote controller, LiPo batteries and a charger to operate. We also offer complete operation bundles with all required equipment.

🛒 Contact Us For Order
If you need quotation for different payload configurations, bulk discount or complete operation bundles, please contact our sales team. Project customization and bulk orders are welcome.
