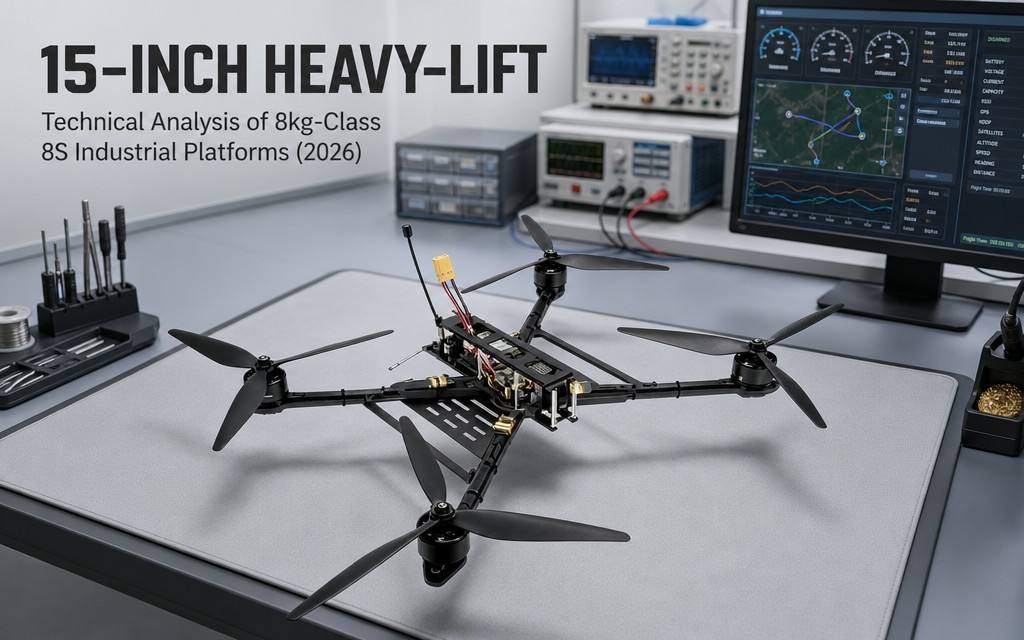

15-Inch QUAD X4 FPV Heavy-Lift Drone: Technical Analysis of 8kg-Class 8S High-Voltage Industrial Long-Endurance Platform

1. Technical Positioning and Core Value

1.1 Industrial Long-Endurance Heavy-Lift Position in the FPV Ecosystem

In the FPV drone product ecosystem, the 15-inch QUAD X4 belongs to the 8kg-class industrial-grade long-endurance heavy-duty operational platform. It is the main model extending FPV drones from medium-load operations to long-endurance industrial applications, and a key connecting product between small/medium FPV drones and large industrial UAVs.

FPV drones of 13 inches and below generally have limited payload and short endurance, struggling to cope with long-distance, long-duration heavy-duty professional operations. Large industrial UAVs offer strong payload capacity and professionalism, but come with high procurement and maintenance costs, large form factors, long deployment cycles and poor maneuverability, resulting in very low cost-effectiveness for medium-scale long-endurance tasks.

The 15-inch QUAD X4 FPV heavy-lift drone fills this gap precisely. It adopts an 8S high-voltage powertrain architecture and a large-size long-endurance airframe design, with a maximum payload of 8kg. Paired with high-capacity batteries, it achieves 12–15 minutes of long endurance under load, while retaining the core advantages of FPV drones: high maneuverability, rapid deployment and high cost-performance. Capable of carrying heavy professional work equipment for medium-to-long range missions, it serves as a cost-effective aerial work platform for medium-heavy load, long-endurance industrial operation scenarios.

1.2 Core Design Logic: High-Voltage Long-Endurance Drive, Balanced Load and Endurance

The core design logic of the 15-inch industrial heavy-lifter is 8S high-voltage powertrain and large airframe as the core, enhanced load capacity and long-endurance performance, balanced with industrial operation reliability and FPV maneuverability:

• High-voltage long-endurance priority: 8S high-voltage architecture reduces operating current, improves power efficiency and continuous output capability. Paired with high-capacity batteries, it adapts to long-duration long-distance heavy-duty operation scenarios.
• Upgraded payload capacity: 8kg maximum payload covers most medium-heavy mission loads such as heavy sensors, professional equipment and bulk supplies.
• Enhanced stability: The 645mm large-wheelbase design greatly improves flight stability under heavy load, meeting the high stability requirements of long-endurance, high-precision operations.

2. In-Depth Technical Analysis of Core Systems

2.1 Airframe and Payload System: 15-Inch Industrial Long-Endurance Heavy-Lift Structure

The airframe adopts a 15-inch quadcopter layout with a 645mm wheelbase, body dimensions of 469.5 × 469.5 × 60mm and a dry weight of approximately 2.85kg. Maximum payload is 8kg.

The structure is specially optimized for industrial long-endurance heavy-load operations:

• Large-wheelbase heavy-load stability design: The 645mm large wheelbase greatly improves flight stability under heavy load compared with small and medium models. Long-endurance flight attitude is steadier with less image jitter, benefiting operation scenarios requiring high precision and stability such as inspection, surveying and aerial photography.
• High-strength industrial structure: The main airframe uses high-strength composite material with excellent deformation and impact resistance, withstanding structural stress during long-duration heavy-load flight. Sufficient mounting space and positions are reserved to fit different types of professional work equipment.
• Long-endurance adaptive design: 20×400mm wide battery straps support large-capacity battery installation for long-endurance energy demand. The structural design balances aerodynamic efficiency, reduces flight drag and improves endurance performance.
• CG-optimized layout: The mounting area is centered to keep the center of gravity at the geometric center of the airframe after loading, avoiding adverse effects on control, attitude stability and endurance.

2.2 Flight Controller and Powertrain: 8S High-Voltage Long-Endurance Tuning

The flight control system uses an F405 V3 high-performance flight controller paired with an ICM42688P high-precision gyroscope. The F405 V3 offers sufficient processing power and rich peripheral interfaces, with PID parameters optimized for heavy-load long-endurance flight to ensure stable attitude and precise control during long-duration loaded flight. The ICM42688P gyroscope offers high sample rates and low noise, with delicate and accurate attitude response suitable for long-endurance precise control.

The powertrain uses 4218 brushless motors with a default KV of 330 (customizable for bulk orders), paired with 65A AM32 ESCs (65A continuous, 70A peak for 10 seconds) supporting 8S 22.4–29.6V wide voltage input. Propellers are 1507 3-blade designs.

This powertrain is directionally optimized for heavy-load long-endurance operations, with the core advantage of the 8S high-voltage architecture: Compared with traditional 6S low-voltage systems, the 8S high-voltage architecture delivers lower operating current at the same output power, lower line losses, higher power conversion efficiency, more stable continuous heavy-load output, lower heat and longer equipment life, making it more suitable for long-duration continuous operations. Low-KV large motors focus on low-RPM high-torque output with highly linear power delivery and steady attitude during loaded flight for precise altitude and speed control. The 65A ESC provides ample power headroom for gusts and climbing maneuvers, ensuring safety during long-endurance heavy-load flight.

2.3 Video Link and Receiver: Multi-Band Long-Range Anti-Interference Architecture

The video system uses a multi-band optional power VTX (Video Transmitter) supporting four band options: 3.3G / 4.9G / 5.8G / 6.5G, with corresponding output power: 4W for 3.3G, adjustable 1.6W / 2.5W / 4W for 4.9G / 5.8G, and 2W for 6.5G.

The receiver system offers optional ELRS 915M / 2.4G receivers paired with long-range high-gain antennas. ELRS (ExpressLRS) is the current leading long-range control protocol, featuring high refresh rates, low latency, strong anti-interference and long telemetry range. The 915M band excels in diffraction and penetration, suitable for industrial long-distance operation scenarios with many buildings, mountain obstructions and complex electromagnetic environments. Combined with a high-gain antenna, it delivers kilometer-scale reliable control and video return.

The technical value of the multi-band design lies in scenario adaptation: the 3.3G band offers strong diffraction for complex long-range obstructed environments; the 5.8G band offers high bandwidth for close-range HD operations; the 4.9G / 6.5G bands have less co-channel interference for long-range operations and multi-person collaboration.

2.4 Imaging System: 0.001Lux Ultra-Low-Light Starlight Imaging

The imaging system uses a 1/2.7-inch starlight-grade CMOS sensor with 1700TVL resolution and a minimum illumination of 0.001Lux.

Compared with standard FPV cameras, this starlight sensor delivers industrial-grade low-light performance: a minimum illumination of 0.001Lux means it still outputs clear, low-noise footage in dusk, overcast, night glow and even ultra-low light environments. This supports night inspection, low-light reconnaissance, dawn/dusk long-endurance operations and other special scenarios, greatly expanding effective operating time and scenario boundaries. For medium-to-long-range long-endurance flight, starlight sensors also better preserve image detail, improving observation accuracy for long-range operations.

2.5 Flight Performance

With 8kg payload and 8S 2200mAh battery, flight time ranges from 12 to 15 minutes. This endurance performance is leading among comparable models, following the performance law of heavy-lift long-endurance models: heavier payloads reduce flight time. Larger capacity batteries can extend endurance but reduce available payload, requiring a balance based on mission requirements.

3. Typical Application Scenarios and Technical Fit

3.1 Industrial Aerial Photography

For large documentary aerial photography, construction progress documentation, and creative FPV film production, the 15-inch drone offers high payload, long endurance and good stability, and can carry professional imaging equipment, making it a cost-effective choice for professional aerial photography. Technical fit: 8kg maximum payload carries professional cameras, stabilized gimbals and other heavy imaging equipment; large-wheelbase long-endurance platform delivers steady footage and strong long-take tracking capability; FPV control enables creative shots such as fly-throughs and low-altitude tracking.

3.2 Industrial Facility Inspection

For long-distance power corridor inspection, large petrochemical plant testing, and large infrastructure special inspection, the 15-inch drone carries heavy detection equipment and covers large areas with long endurance. Technical fit: 8kg payload meets heavy detection equipment requirements; 12–15 minute long endurance covers long corridors in a single sortie; multi-band VTX resists electromagnetic interference in industrial plant and substation environments.

3.3 Surveying & Exploration

For medium-large area topographic mapping, engineering survey, mine survey and land investigation, the 15-inch drone offers high payload, long endurance and good stability with high operational efficiency. Technical fit: carries professional-grade survey equipment and positioning modules, with mapping accuracy meeting medium-large engineering specifications; long endurance reduces takeoffs and landings, improving efficiency by several times compared with manual surveying; stable long-range signal works in complex terrain and obstructed areas.

3.4 Special Operations & Reconnaissance

For emergency rescue, security patrol, border reconnaissance and special operation support, the 15-inch drone offers long endurance, stable long-range signal and high payload, suitable for professional teams. Technical fit: long-endurance loiter capability; long-range anti-interference VTX maintains stable signal in complex environments; carries multiple payloads such as detection, delivery and hailing for multi-functionality.

4. Industrial Value and Technology Trends

4.1 Industry Value: Filling the Cost-Performance Gap for Long-Endurance Heavy-Lift FPV

The industrial value of the 15-inch QUAD X4 FPV heavy-lift drone lies in filling the long-endurance heavy-load scenario gap between “small/medium FPV drones” and “large industrial UAVs”, enabling low-cost automation for medium-heavy load, long-endurance industrial operation scenarios. It introduces 8S high-voltage power, long-endurance design and industrial-grade payload capacity into the FPV platform, upgrades the operational grade and continuous operation capability of FPV drones, promotes their expansion from light-load short-endurance work to more industrial long-endurance professional scenarios, and provides cost-effective aerial work tools for engineering teams, emergency departments and industrial operation crews.

4.2 Technology Development Trends

The current technical development direction of 15-inch class heavy-lift FPV industrial drones focuses on four dimensions: First, powertrain efficiency improvement: further improving payload capacity and flight time through aerodynamic optimization, powertrain efficiency upgrades and high-energy-density battery applications to expand long-endurance operational boundaries. Second, functional intelligence: integrating autonomous obstacle avoidance, smart return-to-home, waypoint planning, loiter mode and other aids to lower operational barriers and improve flight safety and operational standardization. Third, payload specialization: launching specialized payload integration solutions for different operation scenarios to improve operational professionalism and convenience. Fourth, digital video link: gradual transition from analog to digital video transmission to improve image quality, reduce latency and enhance anti-interference, enhancing long-range long-endurance operational imagery and reliability.
