In Stock — Ready to Ship

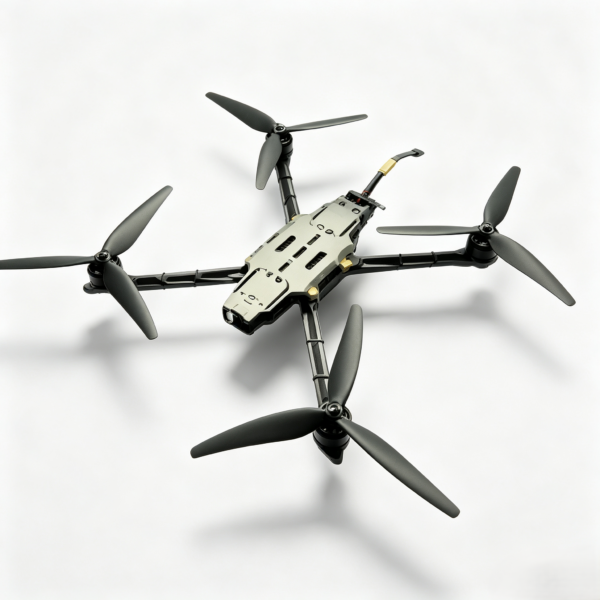

15-inch QUAD X4 FPV drone
15 inch FPV drone, 8kg payload FPV, 8S heavy lift FPV quadcopter, industrial heavy load drone, long range FPV drone
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
This 15-inch QUAD X4 FPV drone features a large wheelbase frame with a maximum payload of 8kg. Powered by an 8S high-spec powertrain, equipped with a starlight-level HD camera and multi-band high-power VTX, it delivers industrial-grade load capacity and long-range flight performance, suitable for heavy-lift aerial photography, industrial inspection, special operations and long-distance reconnaissance & mapping.
Frame
| Item | Details |
|---|---|
| Wheelbase | 645mm |
| Frame Size | 469.5 × 469.5 × 60mm |
| Weight | ≈2.85kg (exclude battery) |
| Maximum Payload | 8kg |
Flight Control
| Item | Details |
|---|---|
| Flight Controller Model | F405 V3 |
| Gyroscope | ICM42688P |
| Mounting Hole Position | 30.5 × 30.5mm |
ESC (Electronic Speed Controller)
| Item | Details |
|---|---|
| ESC Model | 65A AM32 |
| Input Voltage | 8S, 22.4V-29.6V |
| Continuous Current | 65A |
| Peak Current | 70A (10 seconds) |
Camera
| Item | Details |
|---|---|
| Definition | 1700TVL |
| Image Sensor | 1/2.7″ Starlight CMOS Sensor |
| Minimum Illumination | 0.001Lux |
VTX (Video Transmitter)
| Item | Details |
|---|---|
| Frequency & Power (Optional) | 3.3G: 4W
4.9G: 1.6W / 2.5W / 4W 5.8G: 1.6W / 2.5W / 4W 6.5G: 2W |
| Configuration Note | Either-or option among the above frequency solutions |
Powertrain (Motor & Propeller)
| Item | Details |
|---|---|
| Motor Model | 4218 Brushless Motor |
| KV Value | 330KV (Customizable) |
| Input Voltage | 33.6V (8S) |
| Propeller | 3-blade 1507 propeller |
Accessories
| Item | Details |
|---|---|
| Antenna | 5.8G long-range high-gain antenna |
| Battery Strap | 20×400mm battery strap |
| Receiver | ELRS 915M / 2.4G Receiver (either-or) |
Flight Performance
| Item | Details |
|---|---|
| Flight Time | 12-15mins (with 8.0kg loading, 8S 22000mAh Battery) |
| SKU | IUAV-14160 |
|---|
