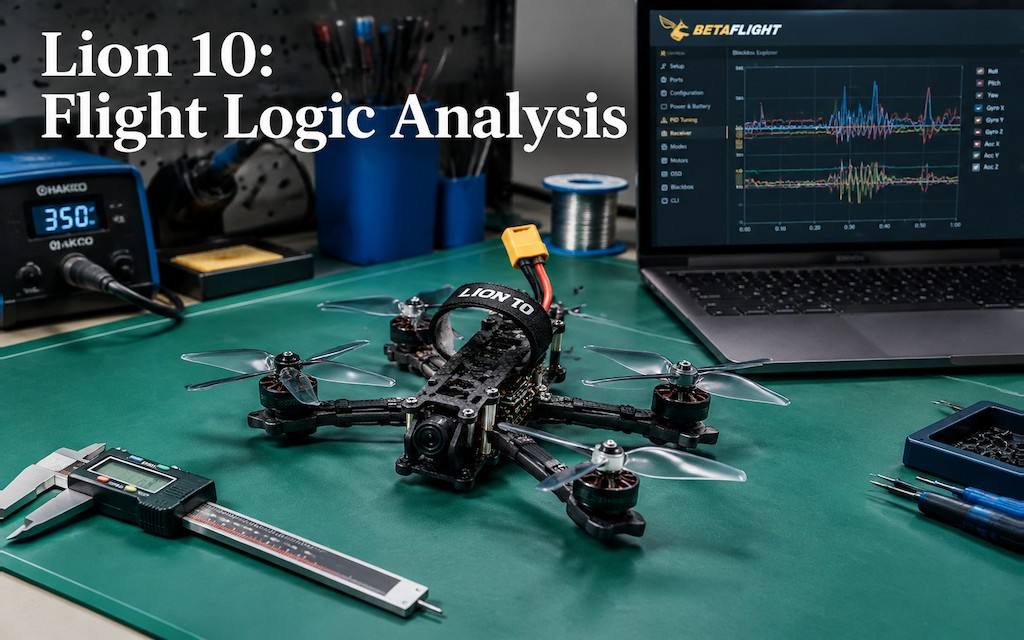

Lion 10 10-Inch Heavy-Lift Long-Range FPV Drone: Technical Analysis of 6kg-Class Medium-Load Medium-Range Industrial Platform

1. Technical Positioning and Core Value

1.1 Position of Light-Industrial FPV Operations

In the FPV drone product ecosystem, the Lion 10 belongs to the 10-inch heavy-lift long-range industrial-grade operational platform. It is the main model extending FPV drones from medium-load long-range flight to light-industrial operations, filling the medium-load medium-range operation gap between small and medium long-range FPV drones and large industrial UAVs.

7-inch class long-range FPV drones generally have a payload under 3.5kg, with operational capability biased towards flight exploration, struggling to carry medium professional work equipment. Large industrial UAVs offer strong payload capacity and professionalism, but come with high procurement and maintenance costs, large form factors and slow deployment, resulting in very low cost-effectiveness for medium-scale operations. Built on a 10-inch heavy-lift airframe, the Lion 10 delivers 4kg standard / 6kg maximum payload capacity, paired with a 10km long-range control link and 45-minute extended endurance. While retaining the maneuverability and low-cost advantages of FPV drones, it achieves light-industrial operational capability, serving as a cost-effective aerial work platform for medium-range medium-load operation scenarios and light industrial applications.

1.2 Core Design Logic: Balanced Heavy-Lift & Long-Range, Industrial Scenario Adaptation

The core design logic of the Lion 10 revolves around “balanced heavy-lift and long-range performance, adapted for industrial operation scenarios”:

• Balanced payload and range: Balances 6kg payload capacity with 10km long-range capability, with 45-minute long endurance supporting single large-area operations, balancing operational capability and efficiency.
• Industrial scenario adaptation: Dual-band VTX, night-vision wide-angle imaging and high-strength airframe adapt to diverse light industrial operation scenarios such as inspection, reconnaissance, surveying and logistics.
• Outstanding cost advantage: Delivers near-professional operational capability at a fraction of the cost of large industrial UAVs, adapting to the cost requirements of medium-scale operations.

2. In-Depth Technical Analysis of Core Systems

2.1 Airframe & Structure: 10-Inch High-Strength Heavy-Lift Frame

It adopts a professional 10-inch FPV frame with unfolded dimensions of 551×551×61mm, featuring excellent structural rigidity and impact resistance, with ample reserved space for equipment installation and payload mounting.

• Structural strength: High-strength frame design delivers excellent structural rigidity and impact resistance, adapting to the high-intensity use scenarios of medium-long range and heavy-load operations.
• Spatial layout: Ample internal and mounting space adapts to various work equipment installations and payload mounting, supporting flexible configuration according to user operation demands.
• Modular design: Standardized and modular core components ensure convenient daily maintenance with ample upgrade space for powertrain, payload and video link, supporting flexible customization and modification according to operation demands.

2.2 Powertrain & Endurance: Long-Endurance Efficient Power Tuning

Powered by a professionally tuned high-efficiency propulsion system, it delivers a maximum horizontal flight speed of 150km/h with rapid acceleration response and controllable flight attitude. It performs stably in both fixed-point hovering operations and long-distance maneuvering.

• Power performance: 150km/h top speed with abundant power output, balancing cruise and maneuver performance, adapting to both long-range cruise and operational maneuver demands.
• Endurance performance: The deeply optimized powertrain and energy efficiency design deliver up to 45 minutes of no-load flight time, greatly extending single-operation coverage and duration. With 4kg standard payload, endurance reaches 8–10 minutes, capable of carrying cameras, detection devices and small operation modules, balancing both long-range flight and heavy-load operation demands.
• Environmental adaptability: Supports a maximum flight altitude of 200 meters, adapting to different altitudes and complex terrain operation environments with strong scenario adaptability.

2.3 Video Link & Receiver System: 10km Long-Range Stable Dual-Band Link

It supports both TBS and ELRS 915MHz long-range receiver solutions. The low-frequency signal delivers strong diffraction penetration and excellent anti-interference performance, with a maximum control range of up to 10km. It maintains stable connection even in complex terrains such as mountains and suburbs and light obstruction environments, fully meeting the signal demands of long-distance inspection, ultra-long-range flight and large-scale survey missions.

The video transmission system supports optional 1.2GHz and 5.8GHz frequency bands for flexible pilot selection:

• The 1.2G band features strong diffraction penetration and low signal attenuation, more suitable for long-range flight and complex obstructed operation environments.
• The 5.8G band delivers low latency and smooth image quality, suitable for medium-short range precise control operations.

2.4 Imaging System: 165° Enhanced Night-Vision Wide-Angle Imaging

It comes standard with a 1200TVL HD wide-angle camera with 480p resolution and a 165° ultra-wide field of view. Equipped with an enhanced night-vision optimization algorithm, it delivers clear and bright imaging in low-light and nighttime environments.

• Ultra-wide FOV: The 165° ultra-wide field of view expands environmental perception during flight, enables earlier obstacle detection and improves operational flight safety, while adapting to wide-area scene observation and inspection.
• Night-vision optimization algorithm: Optimized for low-light and night scenarios, the image remains clear and bright in dim environments, allowing accurate identification of environmental obstacles and operation targets, greatly improving flight safety and operational capability in low-light and night scenarios.

2.5 Ready-to-Fly & Expandability

The entire drone undergoes professional flight tuning and parameter adaptation before delivery, with the flight controller, powertrain, VTX and receiver all optimized to the best state, ready to fly right out of the box. It adopts a modular universal design with highly standardized core components, ensuring convenient daily maintenance and ample upgrade space for powertrain, payload and video link, supporting flexible customization and modification according to operation demands.

3. Typical Application Scenarios and Technical Fit

3.1 Industrial Facility Inspection & Security Patrol

For power line inspection, oil & gas pipeline patrol, factory security and petrochemical facility inspection, the Lion 10 delivers moderate payload, strong long-range capability and excellent cost performance. Technical fit: 4kg standard payload carries medium inspection equipment, completing both visual and temperature detection in one flight; 10km long-range link covers long corridors with high efficiency; procurement and maintenance costs are much lower than professional industrial UAVs, delivering excellent value for routine inspection.

3.2 Emergency Rescue & Aerial Reconnaissance

For fire scene reconnaissance, mountain search & rescue, disaster assessment and emergency delivery, the Lion 10 enables rapid deployment with both reconnaissance and light delivery capability. Technical fit: rapid deployment, operational immediately on arrival; 10km long-range link + 1.2G diffraction band delivers stable signal in complex environments; 6kg maximum payload carries small rescue equipment and supplies; night-vision imaging supports night operations with strong all-weather response capability.

3.3 Aerial Mapping & Regional Exploration

For topographic mapping, engineering survey, outdoor exploration and resource investigation, the Lion 10 balances payload and endurance with high operational efficiency. Technical fit: carries small professional survey equipment and positioning modules, with mapping accuracy meeting medium-scale engineering specifications; 45-minute long endurance and 10km operating radius cover large areas in a single sortie, improving efficiency several times over manual surveying; much lower cost than professional survey UAVs.

3.4 Light-Load Logistics & Point Delivery

For small material transportation, remote point delivery and work equipment transfer, the Lion 10 delivers strong medium-distance delivery capability at low cost. Technical fit: 6kg maximum payload covers the transfer needs of small and medium tools and supplies; 10km long-range link ensures medium-distance delivery control; strong 915MHz signal penetration enables stable delivery in complex environments; much lower cost than large logistics UAVs.

4. Industrial Value and Technology Trends

4.1 Industry Value: Driving FPV Penetration into Light-Industrial Scenarios

The industrial value of heavy-lift long-range industrial FPV drones like the Lion 10 lies in expanding the application boundary of FPV drones from flight entertainment and medium-long range exploration to light-industrial operation scenarios, filling the cost-performance gap between small and medium FPV drones and large industrial UAVs. It achieves professional medium-load medium-range operational capability at lower cost, promotes the penetration of FPV drones into industrial inspection, emergency response and surveying fields, and provides cost-effective aerial work tools for grassroots units and small and medium enterprises.

4.2 Technology Development Trends

The current technical development direction of 10-inch class industrial FPV drones focuses on three dimensions: First, payload and endurance upgrade: further improving payload capacity and flight time through powertrain efficiency optimization, structural light-weighting and high-energy-density battery applications to expand operational boundaries. Second, operation intelligence: integrating autonomous waypoints, position hold, one-key return and other aids to lower operational thresholds and improve flight safety and operational standardization. Third, perception & video link upgrade: upgrading multi-spectral perception capability and advancing digital video transmission to improve operational professionalism and long-range image quality.
