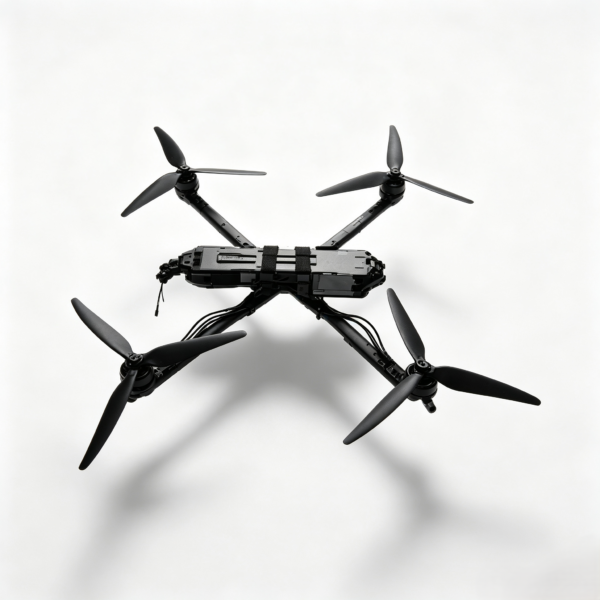

10-inch QUAD X4 FPV drone
10 inch FPV drone, 4kg payload FPV, heavy lift FPV quadcopter, long range FPV drone
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
This 10-inch QUAD X4 FPV drone features a large wheelbase frame with a maximum payload of 4kg. Equipped with a starlight-level HD camera and multi-band high-power VTX, paired with a 6S high-spec powertrain, it delivers outstanding load capacity and long-range flight performance, suitable for heavy-lift aerial photography, industrial inspection and long-distance professional missions.
Frame
| Item | Details |
|---|---|
| Wheelbase | 434mm |
| Frame Size | 295 × 323 × 53.5mm |
| Weight | ≈1.1kg (exclude battery) |
| Maximum Payload | 4kg |
Flight Control
| Item | Details |
|---|---|
| Flight Controller Model | F405 V3 |
| Gyroscope | ICM42688P |
| Mounting Hole Position | 30.5 × 30.5mm |
ESC (Electronic Speed Controller)
| Item | Details |
|---|---|
| ESC Model | 60A AM32 |
| Input Voltage | 6S, 16.8V-22.2V |
| Continuous Current | 60A |
| Peak Current | 65A (10 seconds) |
Camera
| Item | Details |
|---|---|
| Definition | 1700TVL |
| Image Sensor | 1/2.7″ Starlight CMOS Sensor |
| Minimum Illumination | 0.001Lux |
VTX (Video Transmitter)
| Item | Details |
|---|---|
| Frequency & Power (Optional) | 3.3G: 4W
4.9G: 1.6W / 2.5W / 4W 5.8G: 1.6W / 2.5W / 4W 6.5G: 2W |
| Configuration Note | Either-or option among the above frequency solutions |
Powertrain (Motor & Propeller)
| Item | Details |
|---|---|
| Motor Model | 3115 Brushless Motor |
| KV Value | 900KV (Customizable) |
| Input Voltage | 25.2V (6S) |
| Propeller | 3-blade 1050 propeller |
Accessories
| Item | Details |
|---|---|
| Antenna | 5.8G long-range high-gain antenna |
| Battery Strap | 20×250mm battery strap |
| Receiver | ELRS 915M / 2.4G Receiver (either-or) |
Flight Performance
| Item | Details |
|---|---|
| Flight Time | 12-15mins (with 3.5kg loading, 6S 8000mAh Battery) |
| SKU | IUAV-14143 |
|---|
