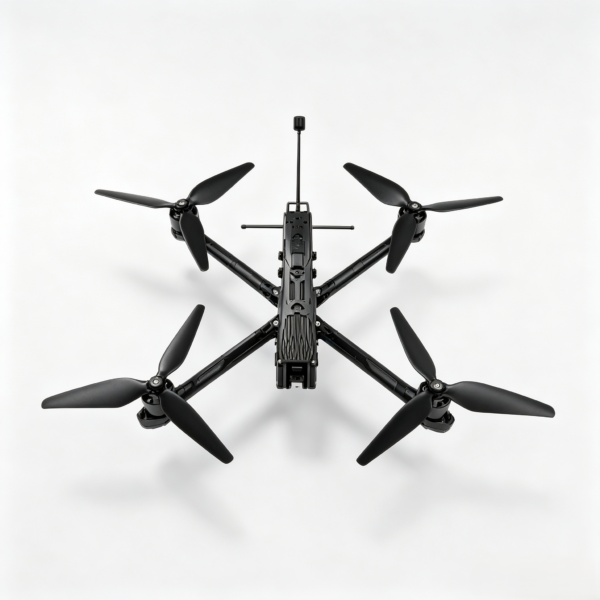

Lion10 10 Inch FPV Racing Drone

Product Overview

The Lion10 10‑inch FPV racing drone is a compact heavy‑lift long‑range quadcopter built for industrial FPV missions, cargo delivery and field inspection. Balancing small footprint, solid payload capability and long‑distance control performance, this carbon‑fiber FPV platform fills the gap between small freestyle FPV drones and large 13‑inch heavy‑lift models.

Featuring a high‑strength full carbon‑fiber airframe, it delivers a top speed up to 150 KM/H. It supports both ELRS 915MHZ and TBS receiver systems, with dual‑band VTX for flexible long‑range or low‑latency FPV viewing. The onboard 165° enhanced night‑vision wide‑angle camera provides clear first‑person view even during dusk and night‑time operations.

With up to 4 kg standard payload and 6 kg maximum payload, Lion10 is well‑suited for light‑to‑medium cargo drop, site survey and outdoor emergency tasks. Its compact unfolded dimension of 55155161mm makes transportation and on‑site deployment much easier compared to larger 13‑inch heavy‑lift drones.

Note: This is a professional FPV platform. Previous FPV piloting experience is required, not for absolute beginners.

✨ Key Features

✅ Compact Heavy‑lift Airframe Unfolded size only 55155161mm, full carbon‑fiber frame and arms, lightweight yet impact‑resistant. Fits for vehicle transport and quick field setup.

✅ Strong Payload Capacity 4 kg standard payload, peak 6 kg maximum payload. Capable of light‑medium material delivery and task‑oriented external mounting.

✅ Impressive No‑load Endurance Up to 45‑minutes flight time without payload for large‑area patrol and inspection. Payload flight time: 8‑10 minutes under full load condition.

✅ 10 KM Long‑range Control & Dual‑band VTX Compatible with TBS / ELRS 915MHZ receivers, delivering stable 10‑kilometers control range in open environments. Selectable 1.2G for ultra‑long‑range video transmission or 5.8GHz for low‑latency high‑speed racing flight.

✅ 165° Enhanced Night‑Vision Wide‑angle FPV Camera 480p 1200TVL FPV camera with 165‑degree super wide field‑of‑view. Enhanced night‑vision performance supports low‑light and night‑time mission operations. Camera is for real‑time FPV viewing, not dedicated for high‑quality cinematic recording.

✅ High‑speed Racing‑Grade Power System Maximum flight speed reaches 150 KM/H. Abundant power headroom for fast cruising and dynamic industrial FPV missions.

📋 Product Specifications

表格

📦 What’s In The Box

• 1 × Lion10 10‑inch FPV Drone Frame & Airframe Assembly
• Set of 10‑inch propellers
• Onboard FPV Camera Module
• VTX video transmitter module
• Hardware accessories pack

⚠️ Notice: Battery, remote controller, receiver are NOT included, need to be purchased separately according to your mission requirements.

🎯 Application Scenarios

• Light‑weight emergency cargo delivery & material drop
• Field site inspection, wilderness survey & patrol
• Long‑range FPV cross‑country flight
• Heavy‑lift FPV modification projects
• Day & dusk low‑light observation missions

⚠️ Important Notes

1. Payload will drastically reduce flight time. At max 6 kg loading, flight time drops to only 8‑10 minutes. Prepare sufficient spare batteries for field operations.
2. Control range of 10 KM is achieved under open‑sky interference‑free conditions. Actual working distance will decrease with obstacles and signal interference.
3. This is a professional FPV platform, not a consumer ready‑to‑fly toy drone. Pilots must have mature FPV flying skills.
4. Stock camera serves real‑time FPV feed only. If you need high‑quality aerial footage, extra gimbal camera is required.
5. Please comply with local drone flight regulations before outdoor flight.
