In Stock — Ready to Ship

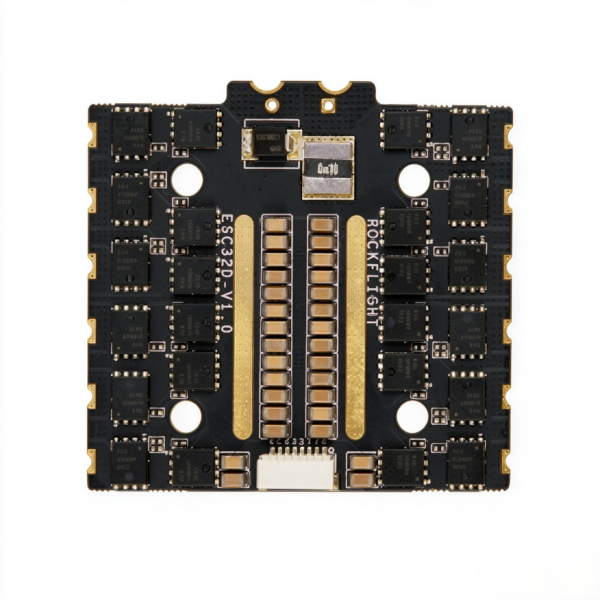

RFESC-110A Industrial-Grade Flagship Heavy-Load 4-in-1 Brushless ESC | AM32 Firmware | DSHOT600 Supported | 110A×4 Ultra-High Current | 2-8S LiPo | For 13/15 Inch Heavy-Duty Industrial Drones
RFESC-110A industrial-grade flagship heavy-load 4-in-1 brushless ESC runs deeply optimized AM32 open-source firmware with DSHOT300/600 high-speed protocol support, delivers 110A continuous current per channel, and accepts 2-8S wide-voltage LiPo input. With flagship circuit design and reinforced thermal system for stable full-load long-time operation and standard stack mounting, it is designed for 13/15 inch professional heavy-load UAVs including heavy logistics, high-load plant protection and industrial inspection models, featuring abundant power and ultimate reliability.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The RFESC-110A is a flagship 4-in-1 brushless ESC built for heavy-load industrial UAVs and heavy-duty professional operation aircraft, developed for harsh application scenarios with ultra-high load capacity and long-endurance continuous operation. It runs the next-generation deeply optimized AM32 open-source ESC firmware, natively supports DSHOT300 and DSHOT600 high-speed digital speed control protocols, and features specially optimized driving efficiency and thermal stability for 100A+ high-current high-voltage scenarios, with delicate and precise throttle linearity, ultra-low conduction loss and stable controllable power response, fully meeting the power control demands of professional scenarios such as heavy logistics transportation, high-load plant protection and large-scale surveying & inspection.
With 4 independent high-power drive channels delivering 110A continuous current per channel with abundant peak power headroom, it easily handles extreme heavy-load working conditions. It supports wide 2-8S LiPo input, perfectly fitting professional heavy-load models such as 13-inch and 15-inch large FPV long-range drones, industrial heavy-load surveying & inspection UAVs, heavy logistics delivery drones and high-load agricultural plant protection UAVs. The thick high-conductivity copper PCB and reinforced high-efficiency thermal structure, combined with full-range hardware & software multi-protection mechanisms, ensure stable and reliable operation during long-time full-load continuous missions. With industry-standard mounting holes for direct stack installation with flight controllers, it enables clean wiring and convenient assembly, making it the flagship reliable choice for professional heavy-load UAV power systems.
Core Technical Specifications
| Category | Details |
|---|---|
| Model | RFESC-110A |
| Product Type | Industrial-Grade Flagship Heavy-Load 4-in-1 Brushless Electronic Speed Controller (ESC) |
| Built-in Firmware | AM32 Open-Source ESC Firmware |
| Supported Speed Protocols | DSHOT300 / DSHOT600 |
| Continuous Output Current | 110A × 4 independent channels |
| Input Voltage | 2-8S Lithium Polymer Battery (LiPo) |
| Compatible Models | 13/15 inch heavy multi-rotors, industrial heavy-load surveying/inspection/logistics/plant protection UAVs |
Core Features & Benefits
1. Deeply Tuned Professional AM32 Firmware for High-Voltage Efficiency & Precise Control
Powered by AM32 open-source ESC firmware deeply optimized for high-current scenarios, with upgraded driving algorithm and thermal control logic, it significantly reduces conduction loss and operating temperature rise compared with traditional solutions, improves overall power system efficiency, and effectively extends the endurance time of long-endurance operations. With native support for DSHOT300 and DSHOT600 high-speed digital protocols, it achieves ultra-low signal latency, delicate and precise throttle linearity, and stable responsive power output, delivering smooth and stable power performance for both steady cruising operations and aggressive maneuvering.
2. 110A 4-Channel Ultra-High Current for Abundant Power Under Heavy-Load Conditions
Adopting 4 independent high-power drive circuits, each channel delivers up to 110A continuous current with abundant peak current headroom, easily driving large industrial brushless motors such as 4822 and 5010 specifications. It fully meets the power demands of ultra-high load models including 13/15 inch large long-range drones, heavy logistics delivery UAVs, high-load agricultural plant protection drones and heavy surveying & inspection aircraft. With wide 2S to 8S LiPo input support, it is compatible with both lightweight long-endurance configurations and high-voltage high-power setups, covering diverse professional application scenarios.
3. Flagship Industrial-Grade Circuit Design with Reinforced Thermal Management for Long-Term Full-Load Stable Operation
It adopts thick high-conductivity copper PCB layout with optimized high-current paths, effectively reducing line resistance and operating heat, and ensuring consistency and long-term stability across all four channels. Paired with a large-area high-efficiency heat dissipation structure and optimized thermal conduction design, it quickly dissipates heat generated during long full-throttle high-load continuous operations, avoiding overheating throttling or power failure, and greatly improving device reliability and service life for long-range and continuous mission scenarios.
4. Standard Stack Mounting Design for Wide Industrial Equipment Compatibility
It adopts industry-standard mounting holes for large-size 4-in-1 ESCs, enabling direct stack installation with matching industrial-grade flight controllers for clean wiring and greatly reduced assembly complexity for large UAVs. It is compatible with most mainstream industrial flight controllers and 13/15 inch airframes, making it convenient for both new system builds and existing power system upgrades.
5. Full-Range Multi-Protection Mechanisms with Flexible Tuning for Professional Operations
Built-in multiple hardware and software protection mechanisms including over-current, over-voltage, under-voltage, over-temperature, stall and short-circuit protection fully ensure the safe operation of the power system and effectively reduce failure risks in professional operations. It supports online parameter adjustment and firmware upgrade via the flight controller with no extra programmer required. Users can customize throttle curves, start braking, protection thresholds and more settings, flexibly adapting to different operation scenarios such as long-range cruising, heavy-load transportation, surveying inspection and agricultural plant protection.
Applicable Scenarios
- Power systems for 13/15 inch extra-large FPV long-range drones and BVLOS long-endurance UAVs
- Power configuration for industrial heavy-load high-precision surveying, power/pipeline inspection, emergency rescue heavy-duty UAVs
- Power systems for heavy logistics delivery UAVs and high-load transport multi-rotor drones
- Power solutions for high-load agricultural plant protection UAVs and forestry operation drones
- Special operation UAVs, professional industrial UAV projects pursuing ultimate power reserve and maximum reliability
Package Contents
- 1 × RFESC-110A 4-in-1 Brushless ESC Main Unit
- 1 × Matching Cable Set
- 1 × Product User Manual
| SKU | IUAV-14191 |
|---|
