In Stock — Ready to Ship
RFRX-ELRS915M ELRS 915MHz RC Receiver | SX1276+ESP8285 Chipset | 100mW Long Range | FPV Drone Remote Controller Receiver for ExpressLRS
RFRX-ELRS915M is a 915MHz RC receiver based on the ExpressLRS open-source protocol. It features an SX1276+ESP8285 dual-chip solution, 100mW telemetry power and 3.6-4.2V wide voltage input. With long-range transmission and strong anti-interference performance, it is compatible with mainstream ELRS transmitters and ideal for long-distance control of FPV drones, fixed-wing aircraft and other RC models.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The RFRX-ELRS915M is a high-performance 915MHz RC receiver developed based on the ExpressLRS open-source protocol. It adopts a dual-chip architecture with a professional SX1276 RF chip and an ESP8285 main controller, delivering 100mW telemetry transmit power with long-range transmission, low-latency response and strong anti-interference performance.
Supporting a wide 3.6V-4.2V input voltage range, it can be powered directly by a single-cell lithium battery and is compatible with most ELRS-enabled remote controllers and TX modules on the market. Its compact, lightweight design ensures easy installation. It is widely used in FPV drone long-range flights, fixed-wing long-distance flight, DIY drones and RC model projects, providing a stable and reliable long-range two-way RC link solution for hobbyists.
Core Technical Specifications
| Specification | Details |
|---|---|
| Model | RFRX-ELRS915M |
| Operating Frequency | 915MHz ISM Band |

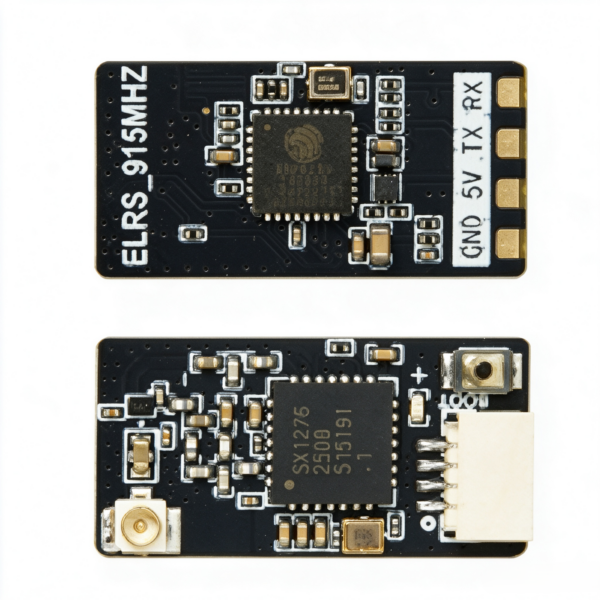

| Chipset Solution | SX1276 RF Chip + ESP8285 Main Controller Chip |
| Telemetry Transmit Power | 100mW |
| Input Voltage | 3.6V – 4.2V DC |
| Supported Protocol | ExpressLRS Open-Source RC Protocol |
| Product Type | Two-Way Telemetry RC Receiver |
Core Features & Benefits
1. 915MHz Band for Superior Long-Range & Penetration
Operating on the 915MHz industrial ISM band, it delivers better signal diffraction and obstacle penetration than common 2.4GHz RC systems, with longer transmission range and stronger anti-blocking performance. It is ideal for long-distance RC flight in open outdoor areas, greatly improving RC link stability and reducing signal loss risk.
2. Dual-Chip Architecture for Stable & Reliable Performance
Built with a professional SX1276 RF chip paired with an ESP8285 main controller, it features high-precision RF signal transceiving and strong weak-signal demodulation capability. The main controller runs ELRS firmware smoothly, balancing low-latency response and high receiving sensitivity, and maintains a stable RC connection even in complex outdoor electromagnetic environments.
3. 100mW Return Power for Stable Two-Way Telemetry
Equipped with a 100mW return link, it supports stable transmission of aircraft status data back to the remote controller, allowing real-time viewing of flight voltage, distance, signal quality and other telemetry information. Paired with a matching ELRS TX module, it enables ultra-long-range two-way data transmission to meet the long-distance control needs of long-range flight enthusiasts.
4. Wide Voltage Input for Strong Compatibility
It supports a wide DC input range of 3.6V-4.2V, powered directly by a 1S LiPo battery. It fits the common power system of RC model equipment, requiring no extra step-up/step-down modules. The simple wiring and easy installation effectively reduce overall wiring complexity and extra payload.
5. Open-Source ELRS Protocol with Wide Compatibility & Flexibility
Developed based on the standard ExpressLRS open-source protocol, it is compatible with most ELRS-supported remote controllers and TX modules on the market. It supports online firmware updates and custom parameter configuration, allowing users to adjust refresh rate, power and other settings according to flight needs for flexible usage across different scenarios.
6. Compact & Lightweight Design for Easy Installation
The compact and lightweight body adds minimal payload to the aircraft. With standard connection terminals and mounting positions, it fits the installation space of most FPV drones and fixed-wing airframes, making assembly and wiring simple and easy even for beginners.
Applicable Scenarios
- FPV drone long-range flight, outdoor freestyle flight practice
- Long-distance control of fixed-wing aircraft and gliders
- RC link setup for multi-rotor DIY drones and RC model projects
- RC receiver for small surveying drones and outdoor operation drones
Package Contents
- 1 × RFRX-ELRS915M ELRS Receiver Main Unit
- 1 × Dedicated Connection Cable
- 1 × Product User Manual
| SKU | IUAV-14111 |
|---|
