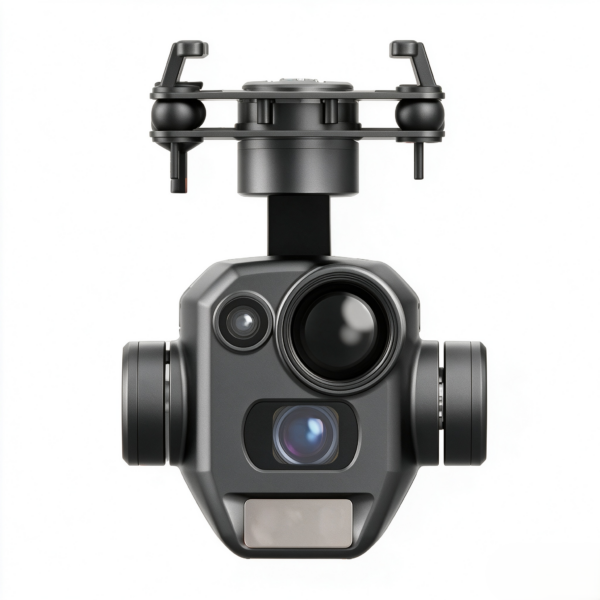

XHTF270 Miniature 3-Axis Four-Optical Stabilized Gimbal Pod | 50MP Ultra-Wide Visible Light + Thermal Imaging | AI Person/Vehicle Recognition | Target Positioning | 4K HD | For Industrial UAV Inspection & Security
XHTF270 miniature 3-axis four-optical stabilized gimbal pod features a 50MP-class ultra-wide visible light + HD infrared thermal imaging dual system, with >1500m daytime and >300m night recognition range. It delivers 0.02° 3-axis stabilization, built-in AI for automatic person/vehicle recognition and 10m-class target positioning, and supports 4K ultra-HD recording. With lightweight industrial design and rich interfaces, it is designed for professional all-weather missions including medium/large UAV inspection, security and search rescue.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The XHTF270 is a high-performance miniature 3-axis four-optical stabilized gimbal pod built for professional industrial applications. It integrates ultra-high pixel visible light imaging, infrared thermal night vision, 3-axis mechanical stabilization, AI intelligent target recognition and precise target positioning, suitable for medium and large industrial UAVs, security patrol vehicles, reconnaissance monitoring platforms and other professional equipment.
It is equipped with a 1/2.5-inch large-format CMOS visible light sensor with 48MP effective pixels (50MP-class ultra-wide angle specification), supporting 8000×6000 ultra-high-definition photography and 4K@50fps HD video recording. It delivers sharp details and wide field of view in daytime. Under visibility ≥ 8km, the target recognition range can reach more than 1500 meters, perfectly suitable for large-scale inspection and long-distance observation scenarios.
Matched with a 25mm focal length infrared thermal imaging channel, it adopts 12μm high-precision thermal imaging pixels and supports smooth 640×512@50fps thermal imaging footage. It can accurately capture targets in low-visibility environments such as night, dense fog and thick smoke. The target recognition range exceeds 300 meters under standard night conditions, realizing truly 24/7 all-weather operation capability.
The built-in 3-axis high-precision mechanical stabilized gimbal achieves 0.02° stabilization accuracy, which can fully offset picture jitter caused by carrier vibration and attitude changes, and output stable and smooth HD images. Equipped with an independent AI computing module, it supports automatic recognition and real-time marking of person and vehicle targets with ≥85% accuracy, and the target positioning accuracy can reach CEP 10 meters, greatly improving the operation efficiency and accuracy of inspection, security and search & rescue scenarios.
With a lightweight integrated design, the gimbal body weighs only 270g. Paired with rich video output and control interfaces and wide-temperature operation capability, it delivers industrial-grade reliability for various complex outdoor working conditions. It is a high-end professional visual payload for power inspection, security reconnaissance, emergency rescue and surveying & monitoring fields.
Core Technical Specifications
1. Camera Parameters
| Parameter | 50MP Ultra-Wide Visible Channel | Infrared Thermal Imaging Channel |
|---|---|---|
| Sensor Spec | 1/2.5″ CMOS, 48MP Effective Pixels | – |
| Focal Length | 5.7mm | 25mm |
| Field of View (FOV) | 54.1°×30.4° (±5%, 1080P) | 17.6°×14.0° (±5%, 1080P) |
| Pixel Size | 0.7μm×0.7μm | 12μm |
| Photo Resolution | 8000×6000 / 3840×2160 / 1920×1080 | – |
| Video Resolution | 3840×2160, 1920×1080@50fps | 640×512@50fps |
| Recognition Range | Daytime: >1500m (visibility ≥ 8km) | Night: >300m (visibility ≥8km, humidity ≤60%, temp difference ≥5K) |
2. Gimbal & AI Parameters
| Parameter | Details |
|---|---|
| Gimbal Azimuth | -110°~+110° / -90°~+90° |
| Gimbal Elevation | -120°~+90° / -90°~+30° |
| Gimbal Roll | -45°~+45° |
| Stabilization Accuracy | 0.02° (1σ, with 0.5° disturbance @ 1Hz) |
| AI Recognition Types | Person, Vehicle |
| Recognition Accuracy | ≥85% |
| Target Positioning Accuracy | CEP 10m |
| Video Encoding | H.264 / H.265 |
| Video Bitrate | 2Mbps / 4Mbps |
3. Basic Specifications
| Parameter | Details |
|---|---|
| Weight | Gimbal: 270g±5g; AI Module: 35g±2g |
| Gimbal Dimensions | 81.0mm × 90.0mm × 113.0mm |
| Video Output | Ethernet, HDMI |
| Control Interface | UartTTL, Ethernet, SBUS |
| Local Storage | Up to 128GB Micro SD card |
| Operating Temperature | -10℃ ~ +55℃ |
| Storage Temperature | -45℃ ~ +60℃ |
Core Features & Benefits
1. Four-Optical Fusion Imaging System for All-Weather Long-Range Operation
Integrates ultra-wide visible light + HD infrared thermal imaging dual-core imaging system, combining ultra-HD daytime detail observation and low-visibility thermal detection. It achieves 1500m-level daytime recognition range and 300m-level night recognition range, breaking through light and environmental limitations for all-day, all-time and long-distance observation missions.
2. 50MP-Class Ultra-Wide Visible Light for Exquisite Details
Equipped with a 1/2.5-inch large-format CMOS sensor with 48MP effective pixels (50MP class), paired with a 5.7mm ultra-wide focal length for wide field of view and excellent resolution. It supports 8000×6000 ultra-HD photography and 4K@50fps video recording, with sharp details and rich layers. It can clearly capture subtle features of long-distance targets, meeting the needs of high-precision inspection and evidence collection.
3. HD Infrared Thermal Imaging for Accurate Detection in Darkness & Fog
Equipped with a professional-grade infrared thermal imaging channel with 12μm high-precision pixels and 25mm focal length lens, supporting smooth 640×512@50fps thermal imaging output. It can accurately identify targets such as people and vehicles through temperature difference in extreme environments such as complete darkness, dense fog, thick smoke and strong backlight, serving as the core technical guarantee for night inspection, search and rescue and security reconnaissance.
4. 3-Axis High-Precision Mechanical Stabilization for Smooth Footage
Adopting a 3-axis gimbal stabilization structure with full-range large-angle adjustment of azimuth, elevation and roll, it achieves 0.02° stabilization accuracy. It effectively eliminates picture jitter and offset caused by UAV flight vibration, airflow disturbance and rapid attitude switching, delivering stable, smooth and clear HD footage, providing a reliable visual foundation for long-distance observation and AI recognition.
5. AI Intelligent Recognition + Precise Positioning for Boosted Efficiency
Equipped with an independent AI computing module and built-in deep learning algorithm, it supports automatic recognition and real-time on-screen marking of person and vehicle targets with ≥85% accuracy. Combined with the target positioning function with CEP 10m accuracy, it can automatically lock targets and output position information, greatly reducing manual observation pressure and significantly improving operation efficiency and response speed in inspection, patrol and search & rescue scenarios.
6. Industrial-Grade Lightweight Design with Rich Interface Compatibility
Adopting a highly integrated design, the gimbal body weighs only 270g with compact size, compatible with various medium and large UAVs and airborne platforms. It supports dual video output via Ethernet and HDMI, and the control interface is compatible with UartTTL, Ethernet and SBUS protocols, enabling flexible connection with flight controllers, remote controllers, upper computers and display terminals. Wide temperature adaptability ensures long-term stable operation under complex outdoor working conditions.
Applicable Scenarios
- Industrial UAV inspection for power lines, oil & gas pipelines, photovoltaic and wind farms
- Border security, reservoir patrol, urban low-altitude security routine monitoring
- Emergency rescue, forest fire prevention, field search & rescue day and night reconnaissance
- Surveying & exploration, environmental monitoring, maritime patrol long-distance observation
- Police reconnaissance, law enforcement evidence collection, emergency command on-site visual monitoring
Package Contents
- 1 × XHTF270 3-Axis Four-Optical Stabilized Gimbal Pod Main Unit
- 1 × AI Computing Module
- 1 × Matching Cable Set
- 1 × Mounting Accessory Kit
- 1 × Product User Manual
| SKU | IUAV-14262 |
|---|
