11-Inch 6-Axis FPV Industrial Drone | 5kg Heavy Payload Long Flight Quadcopter

11-Inch 6-Axis FPV Industrial Drone | 5kg Heavy Payload Long Flight Quadcopter

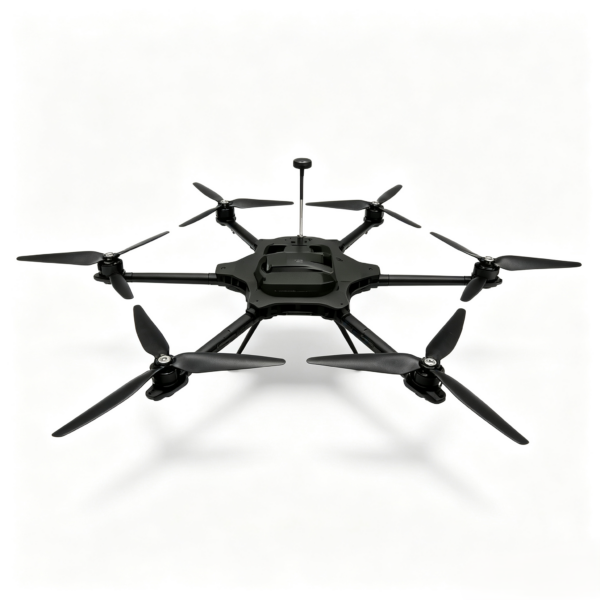

This 11-inch 6-axis FPV drone is a heavy-payload quadcopter built for professional industrial applications. The 6-axis powertrain design delivers stronger power redundancy and flight safety compared to standard 4-axis drones, capable of safe forced landing even with single motor failure, making it ideal for payload-based missions. It supports 4kg standard payload and up to 5kg maximum payload, compatible with cameras, sensors and delivery devices. With 3.5kg payload and 6S 8500mAh battery, it achieves 10-15 minutes of flight time.

It is equipped with an F405 high-performance flight controller with ICM42688P gyroscope for stable and precise flight attitude. The 65A AM32 high-power ESC and 3115 motors deliver strong and consistent power output. The 1700TVL starlight camera and 5.8G adjustable-power VTX provide clear and smooth footage with under 30ms latency. Paired with ELRS 915M long-range receiver and high-gain antenna, it features strong anti-interference signal, serving as a cost-effective aerial platform for professional aerial mapping, inspection and delivery missions.

✨ Key Product Features
- ✅ 6-Axis Redundant Structure: 6-motor layout delivers superior flight stability and power redundancy. Safe forced landing capability with single motor failure, ideal for heavy-payload professional operations
- ✅ Up to 5kg Heavy Payload: 4kg standard payload, max 5kg payload capacity. Compatible with HD cameras, mapping sensors, thermal imagers, small delivery devices and various mission payloads
- ✅ Long Operation Flight Time: 10-15 minutes flight time with 3.5kg payload and 6S 8500mAh battery, meets medium-to-long duration operation requirements
- ✅ F405 High-Performance Flight Controller: Built-in ICM42688P high-precision gyroscope, stable flight attitude and precise control response, suitable for heavy-lift flight and complex operation scenarios
- ✅ 65A AM32 High-Power ESC: 65A continuous current, 75A peak current (10 seconds), supports 6S 25.2V input, delivers powerful and linear power output for heavy-load flight
- ✅ 1700TVL Starlight Camera: 1/2.7-inch starlight CMOS sensor, clear image in low-light conditions, rich detail presentation for operation scenarios
- ✅ Low-Latency Adjustable VTX: 5.8G video transmission, 0.6W/2.5W/3W/4W power levels adjustable, under 30ms latency for highly responsive control
- ✅ ELRS Long-Range Stable Receiver: ELRS 915M receiver with long-range high-gain RHCP antenna, strong anti-interference signal and longer operation flight range

📋 Full Product Specifications
| Category | Specification |
| ---- | ---- |
| Product Type | 11-inch 6-Axis FPV Industrial Drone |
| Wheelbase | 560mm |
| Frame Size | 536 × 610mm |
| Flight Controller | F405 FC; Gyroscope: ICM42688P; Mounting hole: 30.5×30.5mm |
| ESC | 65A AM32 ESC; Input: 6S / 25.2V; 65A continuous current, 75A peak current (10s) |
| Camera | 1700TVL; 1/2.7-inch starlight CMOS sensor |
| VTX (Video Transmitter) | 5.8G; Output power: 0.6W/2.5W/3W/4W adjustable |
| Motor | 3115 brushless motor; KV: 900 (customizable); Input: 25.2V (6S) |
| Propeller | 1050 3-blade propeller |
| Antenna | Long-range high-gain RHCP antenna |
| Battery Strap | 20 × 250mm battery strap |
| Receiver | ELRS 915M receiver |
| Weight | ≈1.3kg (battery excluded) |
| Standard Payload | 4.0kg |
| Max Payload | 5.0kg |
| Video Latency | ≤30ms |
| Flight Time | 10-15 mins (with 3.5kg payload & 6S 8500mAh battery) |
| Assembly | Fully assembled and factory tuned |

🎯 Application Scenarios
This 11-inch 6-axis FPV drone is widely used for professional scenarios: heavy-payload FPV aerial photography, topographic mapping & survey, power line inspection, emergency precision delivery, security patrol & reconnaissance, agricultural resource monitoring, small equipment aerial transportation, construction site survey. Ideal for professional operation teams, surveying institutions, emergency departments and industrial FPV operators.

📦 Packaging & Shipping
- Industrial shockproof protective packaging with multi-layer buffer structure, protects precision components like FC and motors from damage during transit
- Supports retail, project bulk orders and customized configuration orders
- Optional accessories: FPV goggles, 6S 10000/12000mAh LiPo batteries (2 parallel), TX12/T14 remote controller, M6AC charger and more
- Domestic and international shipping available, exclusive logistics solutions negotiable for bulk orders

❓ Frequently Asked Questions FAQ
Q1: Is this a 6-axis drone? What advantages does it have over 4-axis drones?
A: Yes, this is an 11-inch 6-axis FPV industrial drone. Compared with standard 4-axis drones, the 6-axis structure provides stronger power redundancy and better flight stability. It can achieve safe forced landing even with a single motor failure, and delivers higher payload capacity, making it more suitable for professional heavy-payload operations.

Q2: What is the maximum payload? What devices can it carry?
A: 4.0kg standard payload and up to 5.0kg maximum payload. It can carry various light mission payloads such as HD cameras, mapping sensors, thermal imagers and small delivery devices.

Q3: How long is the flight time under payload?
A: Approximately 10-15 minutes under test conditions: 3.5kg payload with 6S 8500mAh battery. Flight time can be further extended with larger capacity batteries or reduced payload.

Q4: How is the video latency? Is the power adjustable?
A: Video latency is under 30ms for highly responsive control, suitable for precision operation flight. It features 5.8G VTX with 4 adjustable power levels: 0.6W / 2.5W / 3W / 4W, selectable according to operation distance and scenarios.

Q5: Is it ready-to-fly out of the box? What else do I need?
A: The drone comes fully assembled and factory tuned. You will need FPV goggles, a remote controller, LiPo batteries and a charger to operate. We also offer complete operation bundles with all required equipment.

🛒 Contact Us For Order
If you need quotation for different payload configurations, bulk discount or complete operation bundles, please contact our sales team. Project customization and bulk orders are welcome.
