FPV Equipment / DJI Mavic Pro Platinum Camera Drones
In Stock — Ready to Ship

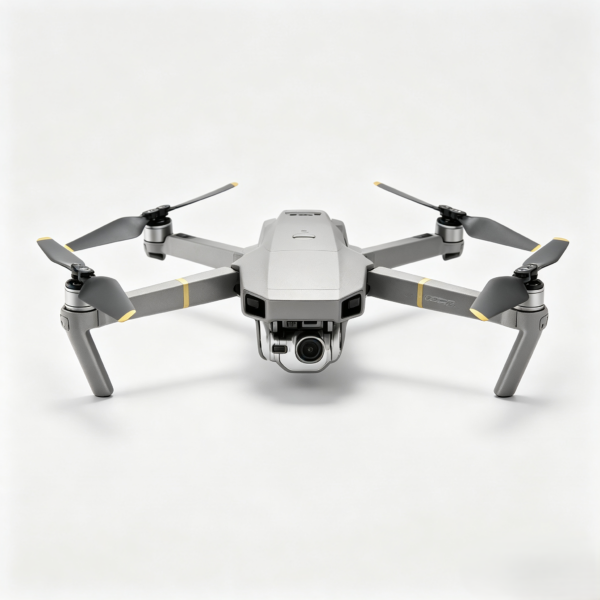

DJI Mavic Pro Platinum Camera Drones

★★★★★ New · 0 reviews
View Product Options
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.

Specs

Aircraft

FoldedH83mm x W83mm x L198mm
Diagonal Size (Propellers Excluded)335 mm
Weight (Battery & Propellers Included)1.62 lbs (734 g) (exclude gimbal cover)
1.64 lbs (743 g) (include gimbal cover)
Max Ascent Speed16.4 ft/s (5 m/s) in Sport mode
Max Descent Speed9.8 ft/s (3 m/s)
Max Speed40 mph (65 kph) in Sport mode without wind
Maximum Takeoff Altitude16404 feet (5000 m)
Max Flight Time30 minutes (no wind at a consistent 15.5 mph (25 kph))
Max Hovering Time27 minutes (no wind)
ESC(Electronic Speed Controller)FOC
Max Total Travel Distance (One Full Battery, No Wind)9.3 mi (15 km, no wind)
Operating Temperature Range32° to 104° F (0° to 40° C)
Satellite Positioning SystemsGPS / GLONASS
Hover Accuracy RangeVertical:
+/- 0.1 m (when Vision Positioning is active) or +/-0.5 m
Horizontal:
+/- 0.3 m (when Vision Positioning is active) or +/-1.5 m
Operating FrequencyFCC:
2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
CE:
2.4-2.4835GHz; 5.725-5.850 GHz
SRRC：
2.4-2.4835 GHz;5.725-5.850 GHz
Transmitter Power (EIRP)2.4GHz
FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm
5.2 GHz
FCC:<=23 dBm
5.8 GHz
FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: –

Camera

Sensor1/2.3” (CMOS), Effective pixels:12.35 M (Total pixels:12.71M)
LensFOV 78.8° 26 mm (35 mm format equivalent) f/2.2
Distortion < 1.5% Focus from 0.5 m to ∞
ISO Rangevideo: 100-3200
photo: 100-1600
Electronic Shutter Speed8s -1/8000 s
Image Size4000×3000
Still Photography ModesSingle shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval
Video Recording ModesC4K: 4096×2160 24p
4K: 3840×2160 24/25/30p
2.7K: 2720×1530 24/25/30p
FHD: 1920×1080 24/25/30/48/50/60/96p
HD: 1280×720 24/25/30/48/50/60/120p
Max Video Bitrate60 Mbps
Supported File SystemsFAT32 ( ≤ 32 GB ); exFAT ( > 32 GB )
PhotoJPEG, DNG
VideoMP4, MOV (MPEG-4 AVC/H.264)
Supported SD CardsMicro SD™
Max capacity: 128 GB. Class 10 or UHS-1 rating required
Operating Temperature Range32° to 104° F ( 0° to 40° C )

Remote Controller

Operating Frequency2.4 GHz to 2.483 GHz
Max Transmission DistanceFCC Compliant: 4.3 mi (7 km);
CE Compliant: 2.5 mi (4 km)
SRRC Compliant: 2.5mi (4 km)
MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference)
Operating Temperature Range32° to 104° F ( 0° to 40° C )
Battery2970mAh
Transmitter Power (EIRP)FCC：<=26 dBm
CE：<=20 dBm
SRRC: <=20 dBm
MIC: <=18 dBm
Operating Current/Voltage950mA @ 3.7V
Supported Mobile Device SizeThickness Supported:6.5-8.5mm
Max length: 160mm
Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™

Wi-Fi

Operating Frequency2.4G/5G
Max Transmission Distance80 m(Distance), 50m(Height) (Unobstructed, free of interference)
Max Speed14 km/h (9 mph)
Max Ascent Speed6.6 ft/s(2 m/s)
Max Descent Speed3.3 ft/s(1 m/s)

Gimbal

Controllable RangePitch: -90° to +30°
Roll: 0° or 90° (Horizontally and vertically)
Stabilization3-axis (pitch, roll, yaw)

Charger

Voltage13.05 V
Rated Power50 W

Vision System

Vision SystemForward Vision System
Downward Vision System
Obstacle Sensory RangePrecision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m)
Operating EnvironmentSurface with clear pattern and adequate lighting (lux > 15)
Velocity Range≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground
Altitude Range1 – 43 feet (0.3 – 13 m)
Operating Range1 – 43 feet (0.3 – 13 m)

Intelligent Flight Battery

Capacity3830 mAh
Voltage11.4 V
Battery TypeLiPo 3S
Energy43.6 Wh
Net WeightApprox.0.5 lbs(240 g)
Charging Temperature Range41° to 104° F ( 5° to 40° C )
