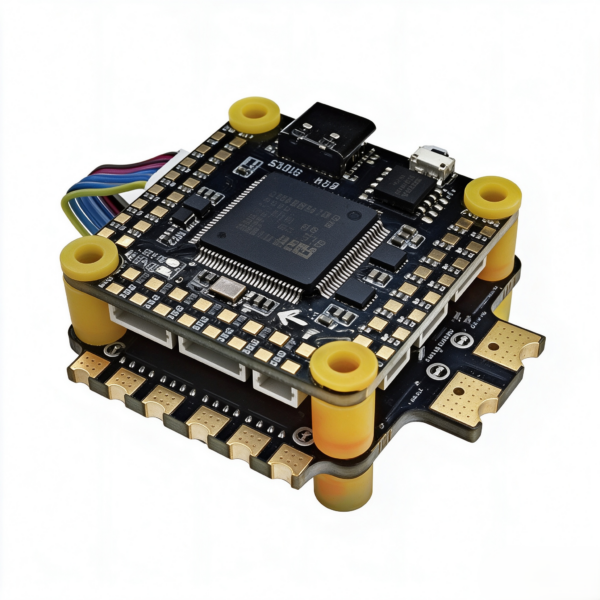

RFFS-H743-50A Flagship High-Performance Flight Stack | STM32H743 FC + 50A 4-in-1 ESC | AM32 Firmware | DSHOT600 Supported | 2-6S LiPo | For 7/8 Inch Professional FPV Drones
RFFS-H743-50A flagship high-performance flight stack features a flagship STM32H743 MCU, high-precision ICM42688P gyroscope and 50A 4-in-1 AM32 ESC, with DSHOT300/600 protocol support and 2-6S LiPo compatibility. With standard stack design for easy installation and powerful computing for wide tuning space, it is designed for 7/8 inch professional FPV drones including racing, freestyle and long-range models.
★ Pilot RewardsEarn Pilot Points with this purchase
Fast, Tracked ShippingOrders ship from our U.S. warehouse with tracking. Delivery estimates appear during checkout.
Product Overview
The RFFS-H743-50A is a flagship integrated stacked flight control system built for 7-inch and 8-inch professional FPV aircraft, integrating a high-performance H7 flight controller and a high-power 4-in-1 brushless ESC. The flight controller is equipped with a flagship STM32H743 Cortex-M7 core MCU, delivering significantly higher computing power than mainstream F7/F4 platforms. Paired with a high-precision ICM42688P 6-axis gyroscope, it supports higher gyro sampling rates and multi-layer advanced dynamic filtering algorithms, accurately suppresses airframe vibration interference, and delivers delicate and accurate attitude calculation with excellent control responsiveness and flight stability.
The ESC runs deeply optimized AM32 open-source firmware, natively supports DSHOT300/DSHOT600 high-speed digital speed control protocols, delivers 50A continuous output current per channel with sufficient power reserve, and is compatible with 2-6S LiPo power supply, perfectly adapting to various flying styles such as high-speed racing, freestyle aerobatics and medium-long range flight. Adopting an industry-standard integrated stack design, the flight controller and ESC are deeply pre-matched in both hardware and firmware, with optimized internal wiring to reduce electromagnetic interference for clean and efficient assembly. It is the one-stop flagship power control solution for professional FPV pilots to build high-performance 7/8 inch aircraft.
Core Technical Specifications
| Category | Details |
|---|---|
| Model | RFFS-H743-50A |
| Product Type | All-in-One Flight Stack (FC + 4-in-1 ESC) |
| FC Main Controller | STM32H743 Flagship Cortex-M7 Core MCU |
| FC Gyroscope | ICM42688P 6-Axis Gyroscope & Accelerometer |
| Supported FC Firmware | Betaflight / INAV / Emuflight and other mainstream open-source FC firmware |
| ESC Firmware | AM32 Open-Source ESC Firmware |
| Supported Speed Protocols | DSHOT300 / DSHOT600 |
| ESC Output Specs | 50A × 4 independent continuous output channels |
| Input Voltage | 2-6S Lithium Polymer Battery (LiPo) |
| Compatible Models | 7-inch, 8-inch professional FPV drones and medium-to-large multi-rotor RC models of similar specifications |
Core Features & Benefits
1. Flagship H743 MCU with Upgraded Computing Power for Full Performance Unlock
Powered by the high-performance STM32H743 Cortex-M7 core MCU, it delivers significantly higher main frequency and computing capability than mainstream F7 and F4 series flight controllers. It smoothly runs all advanced features of open-source firmware, supports higher gyro refresh rates and multi-layer dynamic filtering algorithms, accurately cancels airframe vibration interference during high-speed flight, and achieves lower latency and higher accuracy in attitude calculation. It responds precisely to both ultra-responsive control in extreme racing and delicate motion control in freestyle flight, providing professional pilots with extensive parameter tuning space to fully unlock the performance potential of the airframe and power system.
2. Industrial-Grade High-Precision Gyroscope for Stable Attitude & Delicate Control Feel
Equipped with an industrial-grade ICM42688P 6-axis gyroscope and accelerometer, it features excellent low noise, high vibration resistance and minimal temperature drift. Relying on the strong computing power of the H7 main controller and optimized attitude calculation algorithm, it delivers accurate and sensitive attitude perception, stable and smooth flight performance, no jitter or drift during aggressive maneuvers and extreme freestyle scenarios, and delicate responsive control feel, providing professional pilots with the ultimate control experience.
3. 50A High-Performance AM32 ESC with Efficient & Responsive Power Output
The integrated 50A 4-in-1 brushless ESC runs deeply optimized AM32 open-source firmware, with higher driving efficiency and lower conduction loss, effectively improving the overall energy efficiency of the power system and extending flight endurance. With native support for DSHOT300/DSHOT600 high-speed digital protocols, it achieves ultra-low throttle signal latency, responsive power output and delicate controllable throttle linearity. With 50A continuous output per channel and abundant peak power headroom, it can stably drive mainstream brushless motors such as 2306, 2507 and 2807 specifications, fully meeting various power demands of 7/8 inch aircraft.
4. Wide 2-6S Voltage Support for Full Scenario Coverage
It supports a wide input range from 2S to 6S LiPo, suitable for both low-voltage configurations of lightweight practice drones and high-power demands of high-voltage long-range and aggressive freestyle flight. It flexibly adapts to 7/8 inch aircraft with different configurations, covering various flight scenarios such as daily practice, racing competitions, freestyle aerobatics and medium-range long-distance flight.
5. Standardized Stack Design for Easy Installation & Strong Anti-Interference
It adopts industry-standard mounting holes, with deeply pre-matched flight controller and ESC in hardware and firmware, eliminating the tedious steps of self-selection and compatibility debugging. The integrated internal wiring design greatly reduces redundant external wiring, effectively reduces electromagnetic interference, and improves system operation stability under heavy load conditions. Perfectly compatible with mainstream 7/8 inch FPV drone frames, it is convenient for both new drone building and existing power system upgrades.
6. Optimized Thermal Design & Multiple Protections for Long-Term Reliable Operation
It adopts thick high-conductivity copper PCB layout and optimized high-current circuit design, paired with an efficient heat dissipation structure, which effectively reduces temperature rise during long full-throttle flight and ensures stable continuous output. Built-in multiple hardware and software protection mechanisms including over-current, over-voltage, under-voltage, over-temperature and stall protection fully safeguard the power system, effectively reducing flight failure risks and extending service life.
Applicable Scenarios
- 7-inch & 8-inch professional FPV racing drones, advanced freestyle FPV drones
- Medium-long range FPV aircraft, light aerial photography drones
- One-stop assembly for professional FPV pilots, flagship upgrade of flight control & power system for older models
Package Contents
- 1 × RFFS-H743-50A All-in-One Flight Stack Main Unit
- 1 × Matching Cable Set
- 1 × Product User Manual
| SKU | IUAV-14242 |
|---|
